Automatic Capsule Filling Machine Malaysia

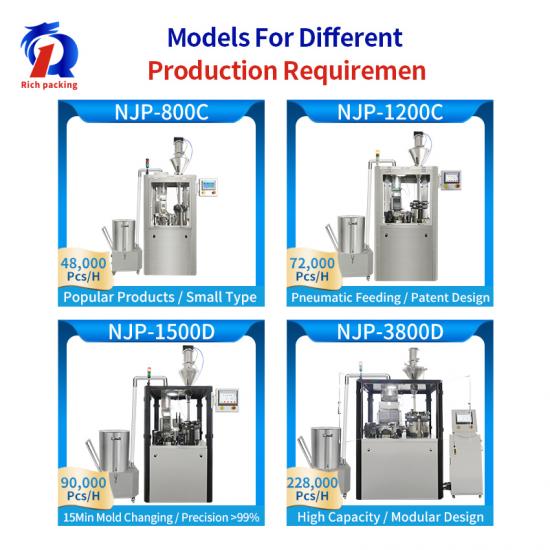

This hard type hollow capsule filling machine 1500D has full marks of precision, and it is very surprising in the western and the Chinese traditional medicine’s capsule filling. This equipment almost has no mistake in capsule filling progress, and this extremely perfect precision degree has prove 1500D’s excellent nature in accomplishment. This machine almost has without any fault in working and this extremely low mistake degree has proved its excellence also.
*** Applications
*** Technical parameter
|
Production capacity |
90000 pcs/h |
|
Net weight of machine |
1200Kg |
|
Overall size of machine |
900×870×1950mm |
|
Power |
380/220V 50Hz |
|
Total power |
5.5KW |
|
No.of segment bores |
9 |
|
Vacuum |
40m3/h-0.04-0.08Mpa |
|
Dust collector |
24.5Kpa 210m3/h |
|
Noise |
<75DB(A) |
|
Making rate |
Empty capsule99.9% Full capsule99.8% |
|
Applicable capsule |
00,0,1,2,3,4,5# |
|
Filling error |
Western medicine:±3% Chinese medicine:±4% |
|
Applicable product |
Power、granule、pellet、tablet |
|
Packing size |
1490×1260×2150mm |
*** Configuration List
|
Item |
Specification |
Qty. |
Manufacturer |
|

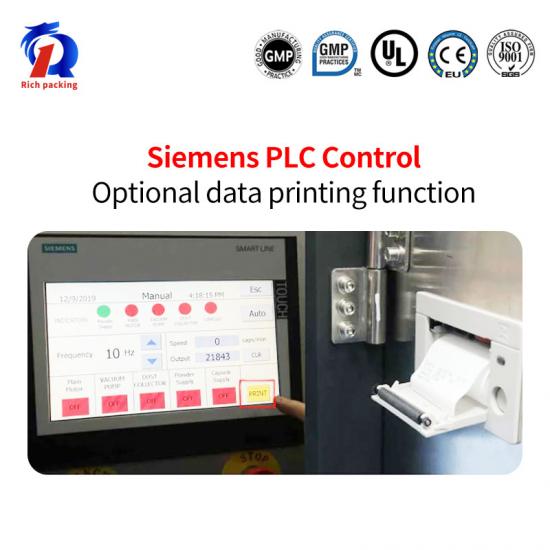

Touch screen |
6AV6/648-0BC11-3AX0 |
1 |
Germany Siemens |
|
PLC |
6ES7/288-1ST20-0AA0 |
1 |
Germany Siemens |
|
AC Contactor |
3TB42 |
4 |
Germany Siemens |
|
Frequency converter |
VFD015 B21A |
1 |
Taiwan Delta |
|
Thermal relay |
3UA59 |
3 |
Germany Siemens |
|
Button |
ZB2-BA3C |
3 |
Schneider |
|
Main Motor |
CH-30-1100W |
1 |
Dongli |
|
Cam |
RU-83DS-10 RU-83DS-6 |
2 |
Taiwandaojin |
|
Vacuum pump（wet） |
SK-0.5A |
1 |
Shanghai |
|
Dust collector |
XLJ Series |
1 |
Self-made |
|
Linear bearing |
LM10UU |
40 |
Korea SAMICK |
|
Linear bearing |
LM12UU |
48 |
Korea SAMICK |
|
Linear bearing |
LM20UU |
8 |
Korea SAMICK |
|
Linear bearing |
LM40UU |
4 |
Korea SAMICK |
|
Roller bearing |
CF6B |
10 |
Japan IKO |
|
Roller bearing |
CF12B |
5 |
Japan IKO |
|
Roller bearing |
CF18B |
1 |
Japan IKO |
|
Deep groove ball bearing |
6200 |
10 |
JapanNSK |
This machine fully automatic capsule filling machine has no noise of low rate during the whole production process, and all kinds of filling rod molds can be replaced very quickly.
People in all over the world are compelled to acknowledge the facts that this machine is really good in everything once when they have used it.
This 1500D machine doesn’t have any sophistication in the machine filling running and it doesn’t need any oil maintenance at all.
*** Why choose us?
This herbal capsule filling machine is so good quality that it always can be revealed its excellence in all the time, and people are so glad to use it to make various capsules. The1500D is not just a very useful machinery but is the very clean medicine making equipment, and it is very clean so 0 dust can be seen. This equipment can successfully and smoothly keep products intact and this nature can make the perfect characteristic of products.
