Components Of A Capsule Filling Machine

The pharmaceutical industry is a complex ecosystem where precision and efficiency are paramount. Among the many technologies that drive this industry forward, Capsule Filling Machines play a pivotal role. These machines are responsible for accurately filling capsules with the correct dosage of medication, a task that requires both precision and reliability. To truly appreciate the capabilities of these machines, we need to explore their intricate components and understand how they work together to achieve exceptional results.

1. Capsule Orientation and Separation System

The orientation and separation system plays a vital role in the capsule filling process by ensuring that empty capsules are correctly oriented and separated before being filled. This step is crucial for the subsequent filling and sealing operations.

Capsule Orientation: The orientation mechanism uses rotation or vibration to align the capsules so that their bodies and caps face the correct direction. Capsules pass through a series of guiding channels, and only those in the proper orientation can proceed.

Capsule Separation: Once oriented, the capsules are separated into their bodies and caps, which are then conveyed to the filling position. This ensures that each capsule receives the right dose of medication.

2. Filling Mechanism

At the core of every capsule filling machine lies the filling mechanism, which is responsible for dispensing the precise amount of medication into the capsule bodies. This component is a testament to the marriage of engineering and pharmaceutical science.

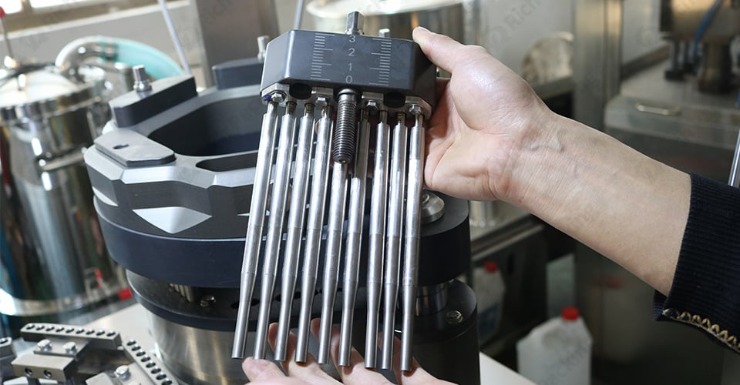

Dosage Metering Device: The dosage metering device is a finely tuned instrument that ensures each capsule receives the exact dose required. This device typically features a dosage plate with precisely drilled holes that correspond to the number of capsules being filled. As the capsules pass through the machine, the dosage plate rotates, distributing the medication evenly.

Hopper and Distribution Mechanism: The raw material, usually in powdered form, is stored in a hopper. This hopper is designed to hold a sufficient quantity of the material while ensuring it remains free from contamination. The distribution mechanism, often utilizing vibration or air pressure, ensures that the powder is spread evenly across the dosage plate, guaranteeing consistent dosages.

Compaction Rollers: After the capsules are filled, compaction rollers play a crucial role in ensuring the contents are securely packed inside. These rollers apply gentle pressure to the filled capsules, compacting the medication and ensuring it remains stable throughout the sealing process and beyond.

3. Sealing System

The sealing system ensures that the capsule bodies and caps are securely sealed together to form a complete capsule.

Alignment: Before sealing, the capsule bodies and caps must be precisely aligned to ensure a tight seal without any misalignment.

Sealing Mechanism: By applying the correct pressure, the capsule bodies and caps are firmly pressed together, creating a sealed capsule.

4. Ejection and Collection System

Once the capsules have been filled and sealed, they need to be ejected from the machine and collected.

Ejection Mechanism: Capsules exit the machine through an ejection mechanism, typically involving a series of guides designed to prevent damage during the ejection process.

Collection Container: Filled capsules are collected in a designated container, ready for further processing or packaging.

5. Control Panel

The control panel acts as the brain of the capsule filling machine, providing operators with the ability to fine-tune various settings and monitor the machine's performance.

Intuitive User Interface: Modern machines are equipped with user-friendly touchscreens that allow operators to set parameters such as dosage, speed, and cycle times. These interfaces provide real-time feedback, enabling operators to adjust settings as needed to maintain optimal performance.

Advanced Monitoring Capabilities: Beyond basic settings, the control panel offers advanced monitoring capabilities. Operators can track the machine's performance metrics, including the number of capsules filled, the rate of production, and any potential anomalies that might affect the quality of the output. This data is invaluable for ensuring the machine operates at peak efficiency.

6. Safety Systems

Safety systems are in place to protect operators and maintain the integrity of the capsules during the filling process.

Emergency Stop Button: In case of emergencies, operators can immediately stop the machine by pressing the emergency stop button.

Safety Barriers: Safety barriers surround the machine to prevent unauthorized access while it is in operation.

7. Cleaning and Maintenance Systems

Regular cleaning and maintenance are crucial for maintaining the longevity and reliability of capsule filling machines. These systems are designed to make the process as straightforward and efficient as possible.

User-Friendly Disassembly: For more comprehensive cleaning and maintenance, certain parts of the machine are designed to be easily disassembled. This allows for quick access to critical areas, making it easier to perform routine checks and replace parts as needed.

Conclusion

Understanding the components of a capsule filling machine is akin to unraveling the secrets of a well-choreographed symphony. Each part, from the delicate dosage metering device to the robust control panel, plays a critical role in ensuring the machine performs with precision and reliability. By combining advanced engineering with pharmaceutical expertise, these machines deliver a level of accuracy that is unmatched in the industry. This guide has provided a detailed look at the inner workings of these machines, highlighting the importance of each component in the grand scheme of pharmaceutical manufacturing. Whether you're a seasoned professional or just starting out, this knowledge is invaluable in navigating the ever-evolving landscape of pharmaceutical technology.
