What Is The Rotating Structure Of The Tablet Press
Oct 20, 2022

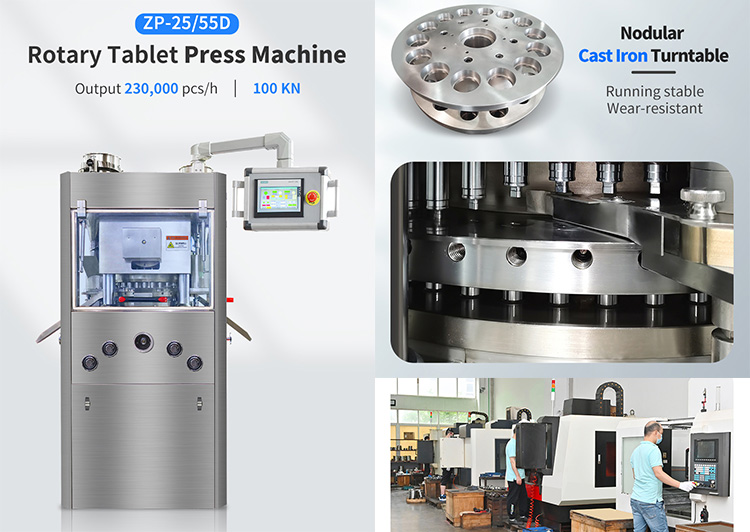

Rotary tablet presses can be used as presses for brushes, carbon sheets and contacts. The power part is mainly composed of the transmission part and the working part. The working part consists of a table that rotates around an axis. The table is divided into three levels. The upper part of the platform is provided with an upper handle, the middle part is provided with a lower handle, and the lower part is provided with a lower handle; other fixed upper and lower pressing wheels, blade weight regulators, tablet weight regulators, feeders, scrapers, tablet regulators, Vacuum cleaners, protectors, etc.
The table of the tablet press is mounted on the central axis of the machine and rotates around the axis. The upper part of the machine moves up and down regularly on a fixed track. The lower punch will also pressurize with the rotation of the machine, and move up and down on the lower punch track. The upper and lower wheels should be installed in a suitable position so that the upper and lower wheels push down and move up and apply pressure as the upper and lower wheels turn and pass their respective wheels.
There is a powder scraper in the center of the table of the rotary tablet press, which fixes the outlet of the feeding port on the scraper, and the material can continuously flow into the scraper and then into the die hole. The pressure regulator is used to adjust the height of the low pressure wheel. When the pressure is compressed, the higher the position of the low pressure wheel, the shorter the distance between the high pressure and the low pressure, the greater the pressure, and vice versa, the lower the pressure. The blade weight adjuster is installed on the discharge track, the volume of the die hole is adjusted by the scraper, and the discharge height is adjusted.
