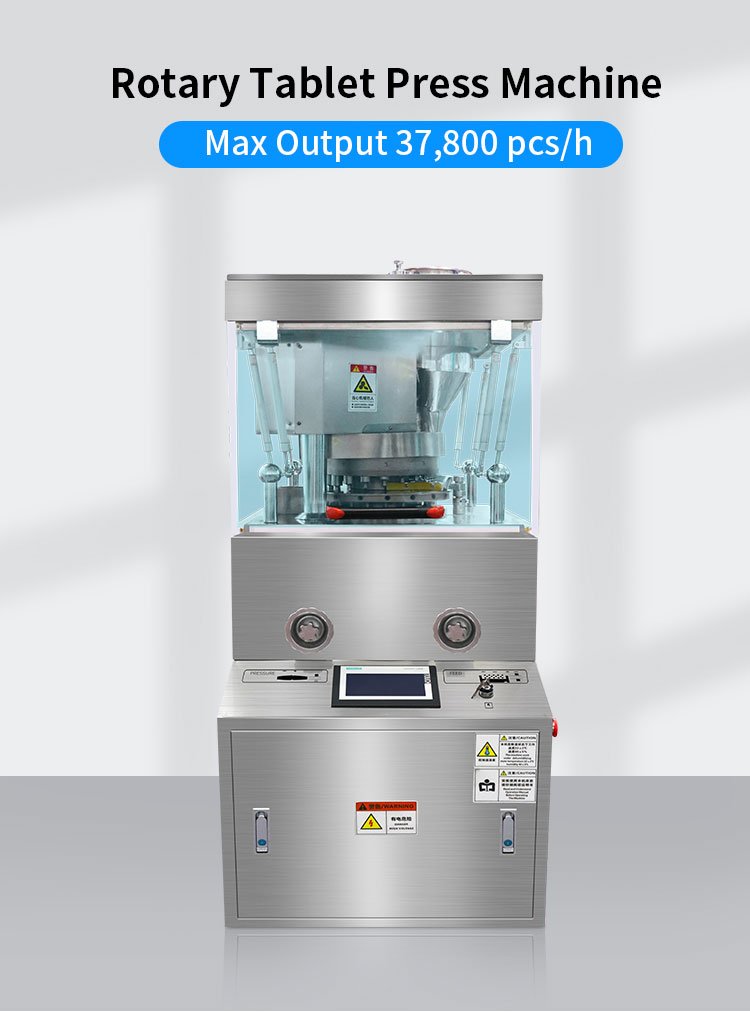

ZP 17D Candy Press Tablet Press Machine By Rich Packing

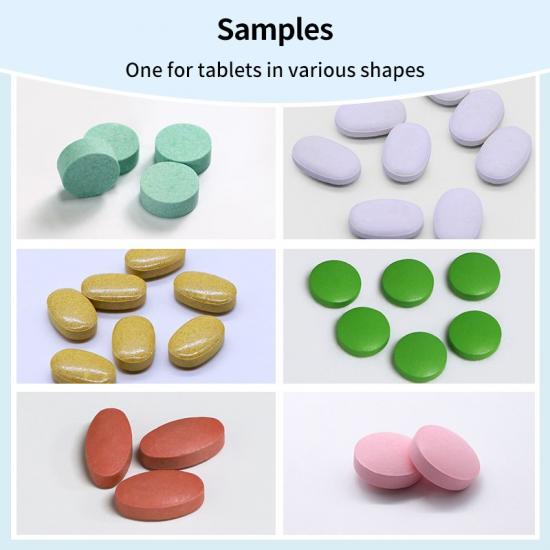

In the earth current situation where the new crown virus epidemic is still raging around the world, in addition to the tablet pressing machinery production of all these pharmaceutical industries, the 17D tablet compress is widely using in the working production of making various kinds shapes large medium and small tablets. In these large and small scales pharmaceutical industries, 17d can be compressed into the small sizes tablets or sterile tablets, chlorine tablets, effervescent tablets and other items for the 24 hours.
*** Technical parameter
|
Model |
ZP11D |
ZP15D |
ZP17D |
ZP19D |
ZP21D |
|
Dies No. |
11 |
15 |
17 |
19 |
21 |
|
Max. Pressure |
100kn |
80 kn |
60 kn |
60 kn |
60 |
|
Max. Dia. of Tablet |
40mm |
25 mm |
20 mm |
13 mm |
12 mm |
|
Max.DepthofFilling |
28 mm |
15 mm |
15 mm |
15 mm |
15 mm |
|
Max.Thickness of Tablet |
10 mm |
6 mm |
6 mm |
6 mm |
6 mm |
|
Rotary Speed |
20r/min |
30 r/min |
30 r/min |
30 r/min |
30 r/min |
|
Max. Production Capacity |
13200 pc/h |
27000 pc/h |
30600 pc/h |
34200 pc/h |
37800 pc/h |
|
Power |
3.0kw |
||||
|
voltage |
220v/380v |
||||
|
dimension |
890*650*1680mm |
||||
|
weight |
1000kg |
||||
*** Configuration
|
Item |
Manufacturer |
|
Frequency converter |
Danfoss |
|
Breaker |
Tracy |
|
touch screen |
Siemens |
|
Main motor |
Shanghai Hengli |
|
Fuse |
zhengtai |
|
Indicator light |
yijia |
|
Emergency stop switch |
zhengtai |
|
Speed regulating resistance |
keying |
|
Contactor |
zhengtai |
|
Intermediate contactor |
xinling |
|
button |
yijia |
|
Key switch |
Tracy |
|
main body |
HT150 rich packing |
|
Turntable |
HT300 rich packing |
|
Upper roller frame |
HT150 rich packing |
|
Upper and lower pressing wheels |
GCr15 rich packing |
|
Upper and lower rails |
GCr15 rich packing |
|
Worm gear box |
WPWKO155 rich packing |
|
Spindle |
45# rich packing |

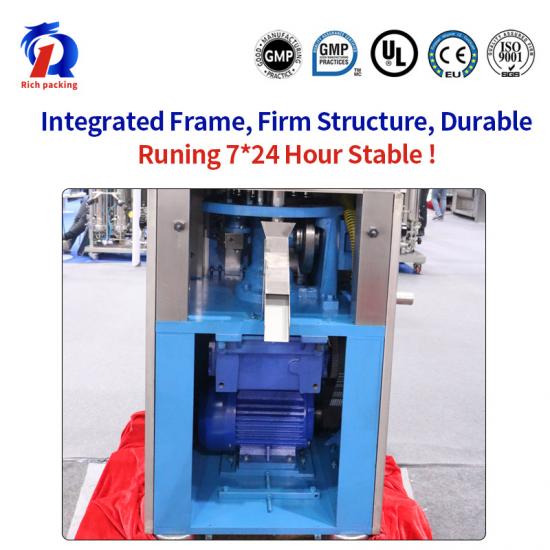

*** Stable structure and chain conveyor belt in ZP17D.
In the food and candy manufacturing industry, candy and big milk tablets can continue to be compressed into the vegetarian tablets.

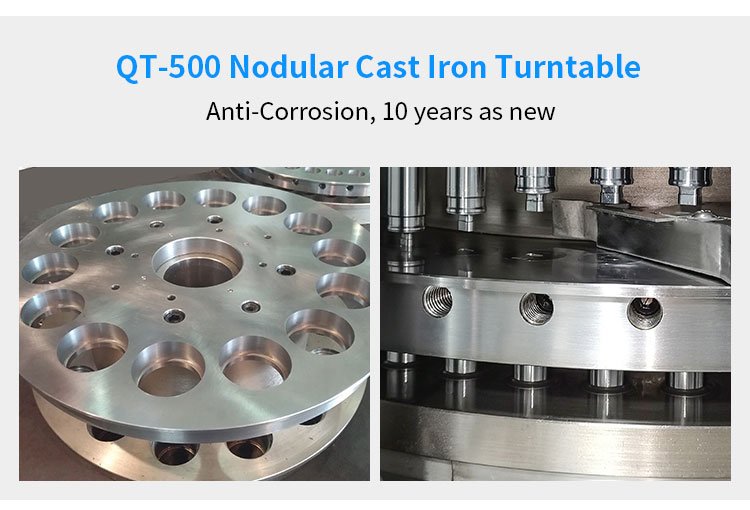

*** Turntable made of integrated cast iron of ZP17D.
17D machine tableting rotary is manufactured in the northern province city of Liaocheng City in the Shandong Province. Its main functions are to making pills of various shapes for customers.
*** Pressure protection device and the aviation-grade power plug in ZP17D.

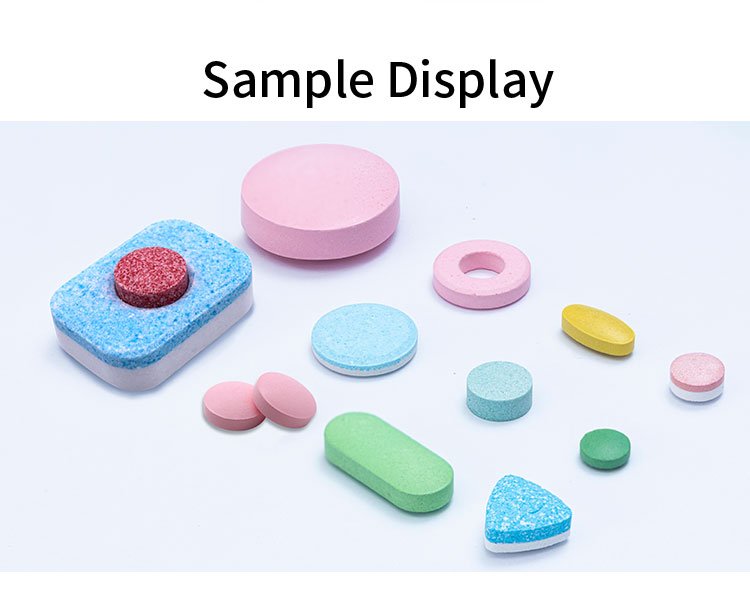

Powerful function not only can shrink ordinary wafers, but also can relatively rare special-shaped wafers, like as the two-color wafers and ring-shaped wafers etc. It is the very powerful and versatile tablet making machinery that can press out a variety of tablets.
*** Certification: SGS, CE, ISO
*** Why should choose our's ZP17D tablet press machine?

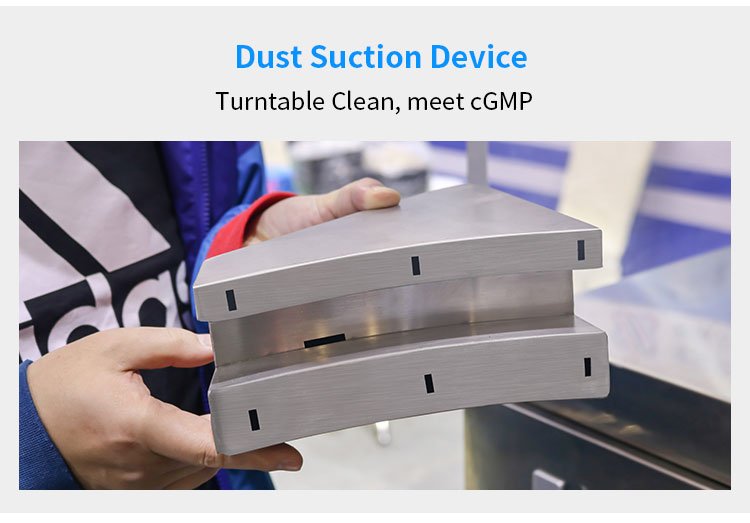

What we in order to make the double suction powder equipment strictly comply with GMP regulations, we have assemble six suction ports in the east, east and down respectively and West side of the turntable.
The cleanliness of the finished tablets is our Rich Packing’s pursuit, mainly to ensure the cleanliness of the appearance of the pills tablets in the tablet press machinery turn table without purifying the tablets.
