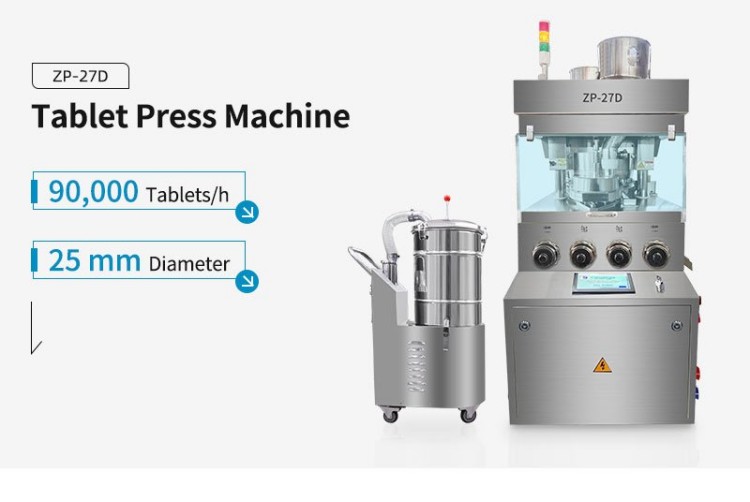

ZP 27 Pill Tablet Press Machine By Rich Packing
The double-pressure super vigorous tableting machine name 27D with the single sided and the double output port design is a new type of tablet press by our company. The 27D’s turntable is made of the nodular cast iron aged for more than 12 months, and has fully released stress makes the 27D turntable have the characteristics of rigidity and resistance to deformation.
*** Technical parameter
|
Dies No. |
27 set |
|
Max. Production Capacity |
55000 pcs/h |
|
Max. Pressure |
120KN |
|
Max. Dia. of Tablet |
25mm |
|
Max. Depth of Filling |
35mm |
|
Max. Thickness of Tablet |
17mm |
|
Dia. Of Middle Die |
Ф38.1mm |
|
Length of Upper/Lower Punching Bar |
136.4mm/153.4mm |
|
Dia.of Upper/Lower Punching Bar |
Ф25.4mm |
|
Rotary Speed |
7～17 r/min |
|
Motor |
7.5kw |
|
Weight of Machine |
1600kg |
|
Outline Dim. |
1040×910×1690mm |
|
Packing Size |
1340×1100×1960mm |
|
Packing size of Dust Collector |
960×620×1460 mm |
*** Configuration List
|
Item |
Specification and Model |
Manufacturer |
|
Overload protector |
Self design |
Self manufacture |
|
Intelligent lubrication system |
American BIJUR DELIMON |
American BIJUR DELIMON |
|
Frequency converter |
VFD037B43B |
Taiwan Delta |
|
AC contactor |
3TB40 22-OXMO |
Germany Siemens |
|
Relay |
MY-2NJ MY-4NJ |
Japan Omron |
|
Upper and lower pressure wheel |
GCr15 |
Self manufacture |
|
Upper rail guide |
GCr15 |
Self manufacture |
|
Turntable |
HT250 |
Self manufacture |
|
Air switch |
DZ108 |
Tengen |
|
Hopper |
1Cr18Ni9Ti |
Self manufacture |
|
Scale hand wheel |
Sensitivity:0.1mm |
Shanghai Lichao |
|
Motor |
Y112M-4 |
Shanghai Lichao |
***
There are also main features in the suitable 27 dies tablet making machine. Our double-sided tablet press also has a water drop-shaped tablet outlet port.
***
The use of the external shape as the tablet outlet is to order to adopt a linear design of flowing water, which can fully facilitate the ejections of these compacted product, without the formation of tablet leakage problem.
***
And the materials can be collected smoothly, and it is protected and taken care of after molding Each tablet at the first time.
*** Certification: SGS, CE, ISO
***

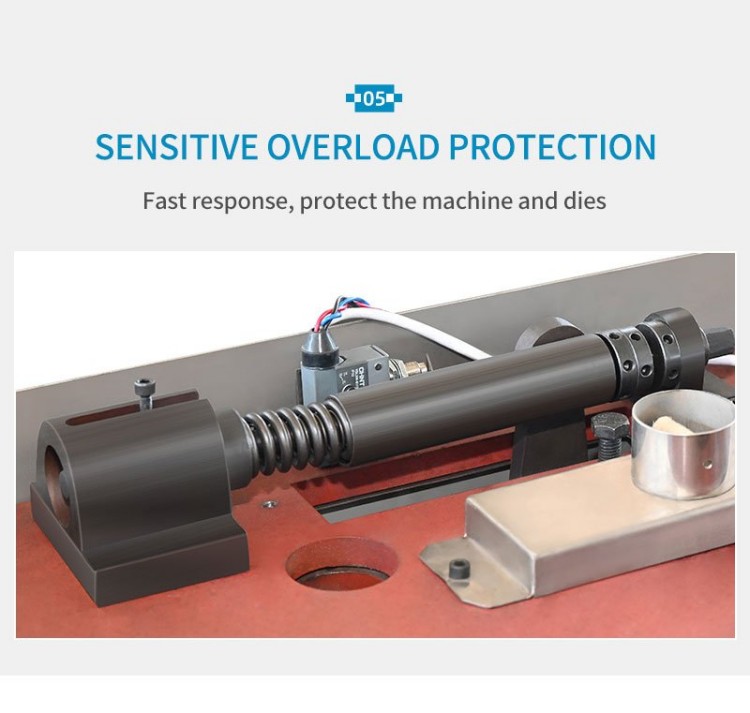

Among above them the top of our double-sided tablet press is equipped with two pressure overload protection devices.
You can send your inquiry to ask our salesperson for corresponding pictures.
Equipped with the two high-sensitivity spring, this device can react quickly when the machine is going breaks down.
The simplest function is to set the sensitivity parameter in the PLC system to prevent the situation, that the mechanical up and down molds exceed this pressure value and immediately trigger the machine’s pressure overload equipment.
Our RICH PACKING company has been participating in various large-scale exhibitions in China and internationally CPHI for a long time, and we look forward to meeting you at the latest pharmaceutical packaging exhibition.
