ZP 35 Automatic Rotary Tablet Press Machine of Rich Packing

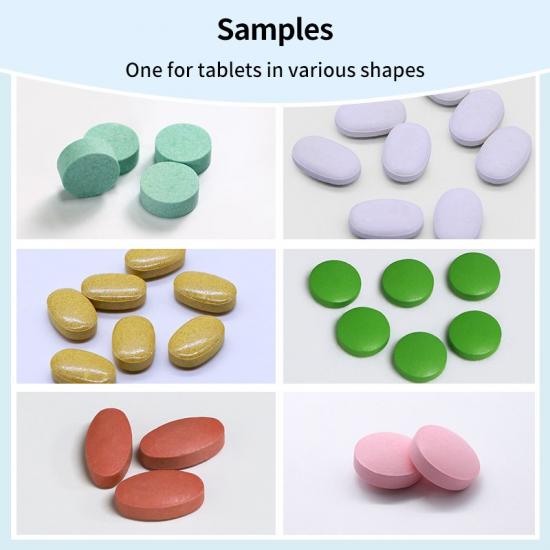

This is a tablet press ZP 35 that is very suitable for making all kinds of tablets and pills. These finished products include round slices of various sizes or two-color slices of various colors or special-shaped slices of various sizes or ring slices of various sizes. The ZP 35 equipment has a wide range of uses, and is widely used in various large, medium and small pharmaceutical companies and candy video manufacturing industries. It has fast production speed, well-formed tablets, and can easily respond to various production orders that are urgent or need to be completed early. ZP 35 is a good help for companies that have such production needs.
*** The production of the tablet press is fully automatic compared to the desktop or single-press type, so the equipment can effectively reduce the labor intensity and unnecessary labor time.
*** Through the normal working operation and warning lights on the top of the ZP 35 machine, operators do not need to pay attention to the machine all the time. When the ZP 35 equipment is working hard and running, the operators can perform other tasks, and several tasks can be completed at the same time to control the ZP 35.
*** Most of the task processes can be carried out at the same time, so the equipment for manufacturing tablets is very convenient for anyone to use, and it is bound to become a good assistant for pharmaceutical companies.
*** Certification: SGS, CE, ISO

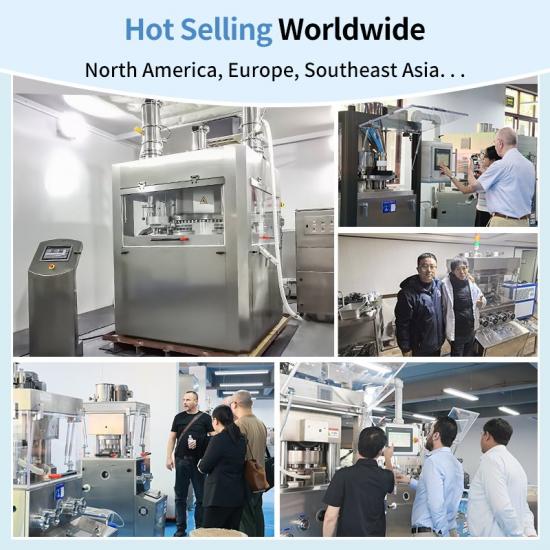

*** This fully-active rotary tablet press will definitely become a good assistant for confectionery and pharmaceutical companies. Because of its fast production speed, it will never disappoint anyone. This type of high-efficiency tablet press that produces pills of various sizes and shapes can create huge profits, and the time saved means that the time utilization will be maximized. At present, the ZP 35 equipment has been exported to various places and has won the attention of many people. Users all over the world have given too much praise for each of its outstanding.
*** Technical parameter
|
Dies No. |
35 set |
|
Max. Production Capacity |
134000 pcs/h |
|
Max. Pressure |
80KN |
|
Max. Dia. of Tablet |
16mm |
|
Max. Depth of Filling |
15mm |
|
Max. Thickness of Tablet |
6mm |
|
Dia. Of Middle Die |
Ф26mm |
|
Length of Upper/Lower Punching Bar |
115mm |
|
Dia.of Upper/Lower Punching Bar |
Ф22mm |
|
Rotary Speed |
5～32 r/min |
|
Motor |
4kw |
|
Weight of Machine |
1500kg |
|
Outline Dim. |
1040×910×1690mm |
|
Packing Size |
1340×1100×1960mm |
|
Packing size of Dust Collector |
960×620×1460 mm |
*** Configuration List
|
Item |
Specification and Model |
Manufacturer |
|
Overload protector |
Self design |
Self manufacture |
|
Intelligent lubrication system |
American BIJUR DELIMON |
American BIJUR DELIMON |
|
Frequency converter |
VFD037B43B |
Taiwan Delta |
|
AC contactor |
3TB40 22-OXMO |
Germany Siemens |
|
Relay |
MY-2NJ MY-4NJ |
Japan Omron |
|
Upper and lower pressure wheel |

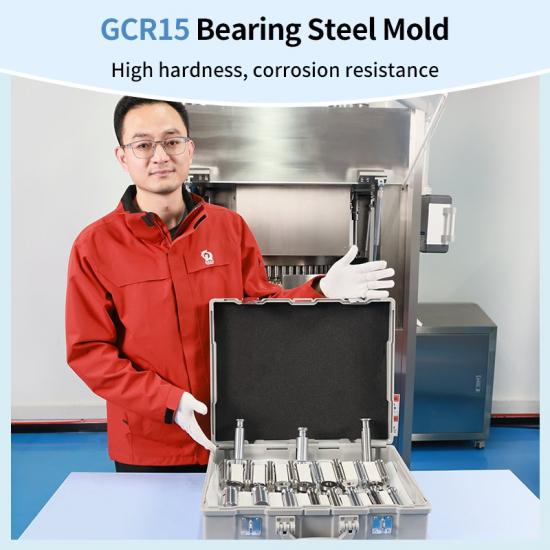

GCr15 |
Self manufacture |
|
Upper rail guide |
GCr15 |
Self manufacture |
|
Turntable |
HT250 |
Self manufacture |
|
Air switch |
DZ108 |
Tengen |
|
Hopper |
1Cr18Ni9Ti |
Self manufacture |
|
Scale hand wheel |
Sensitivity:0.1mm |
Shanghai Lichao |
|
Motor |
Y112M-4 |
Shanghai Lichao |
