ZP 27 Tablet Press Machine
This latest model type of high efficiency pill tablet compression machine CE SGS can make not just one type shape of tablet, but also numerous type shapes of tablets. And not just one color of tablet but also double colors. Numerous colors of tablets can be easily pressed by 27 D machine within a very short time, and this high running speed and high pressure surely make people from all over the world very satisfied. This Rotary Tablet Press Machine is the sixth generations of fully automatic rotary tablet press equipment, and it has numerous strengths like it is very easily to use and very good in running performance.
*** Technical parameter
|
Dies No. |
27 set |
|
Max. Production Capacity |
55000 pcs/h |
|

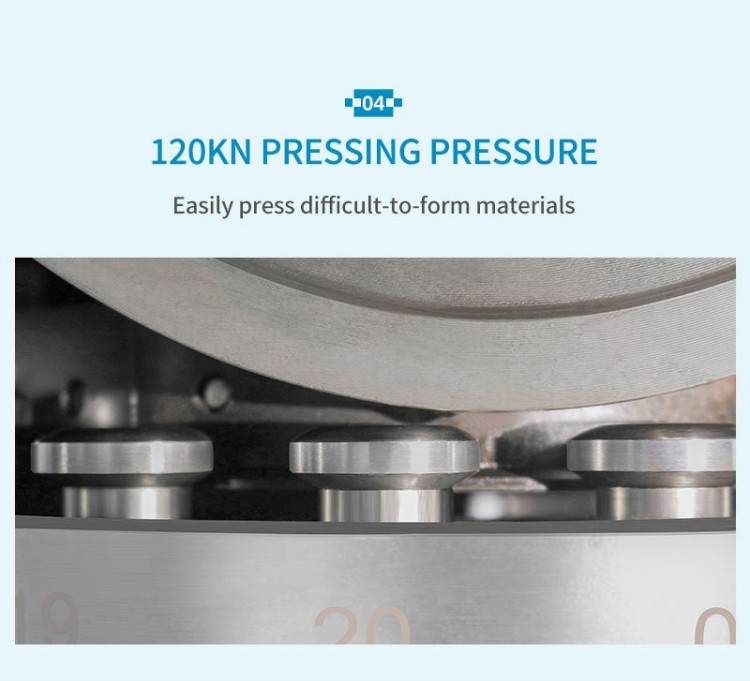

Max. Pressure |
120KN |
|
Max. Dia. of Tablet |
25mm |
|
Max. Depth of Filling |
35mm |
|
Max. Thickness of Tablet |
17mm |
|
Dia. Of Middle Die |
Ф38.1mm |
|
Length of Upper/Lower Punching Bar |
136.4mm/153.4mm |
|
Dia.of Upper/Lower Punching Bar |
Ф25.4mm |
|
Rotary Speed |
7～17 r/min |
|
Motor |
7.5kw |
|
Weight of Machine |
1600kg |
|
Outline Dim. |
1040×910×1690mm |
|
Packing Size |
1340×1100×1960mm |
|

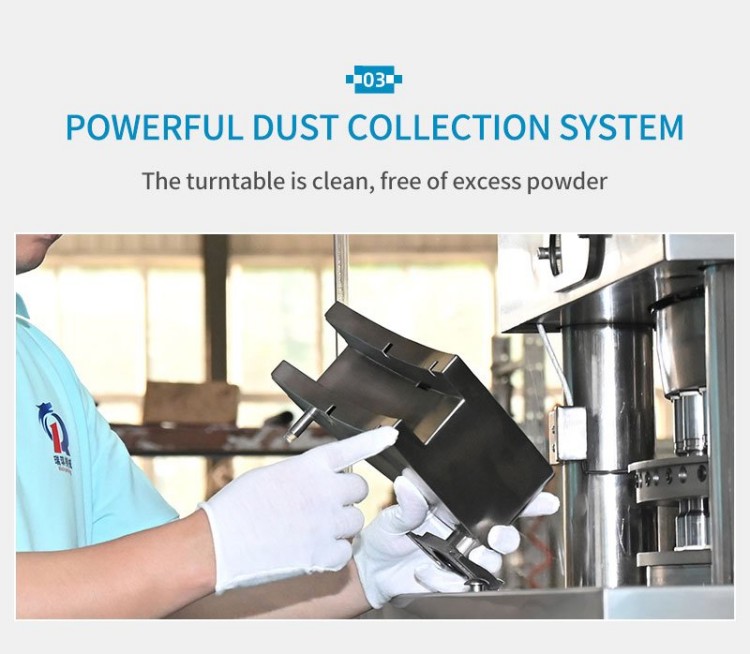

Packing size of Dust Collector |
960×620×1460 mm |
*** Configuration List
|
Item |
Specification and Model |
Manufacturer |
|

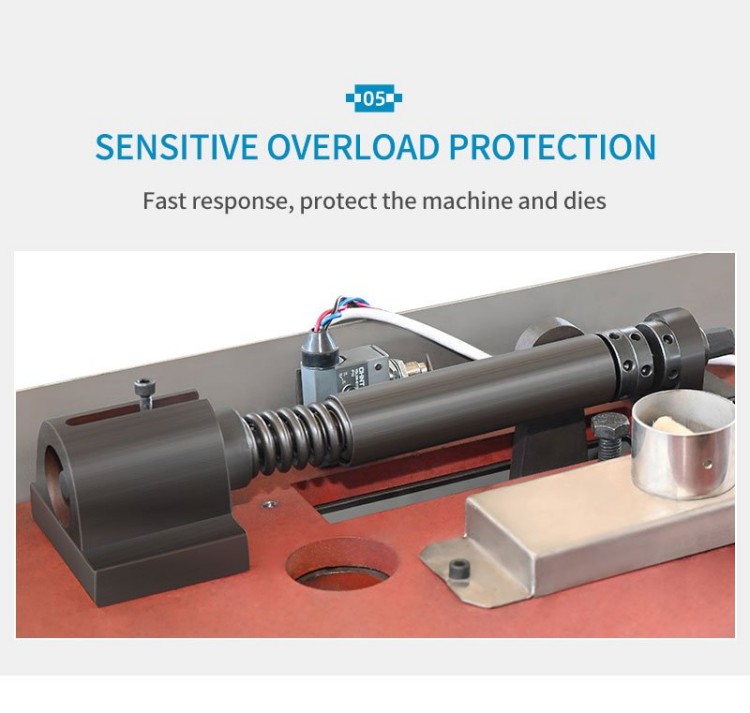

Overload protector |
Self design |
Self manufacture |
|
Intelligent lubrication system |
American BIJUR DELIMON |
American BIJUR DELIMON |
|
Frequency converter |
VFD037B43B |
Taiwan Delta |
|
AC contactor |
3TB40 22-OXMO |
Germany Siemens |
|
Relay |
MY-2NJ MY-4NJ |
Japan Omron |
|

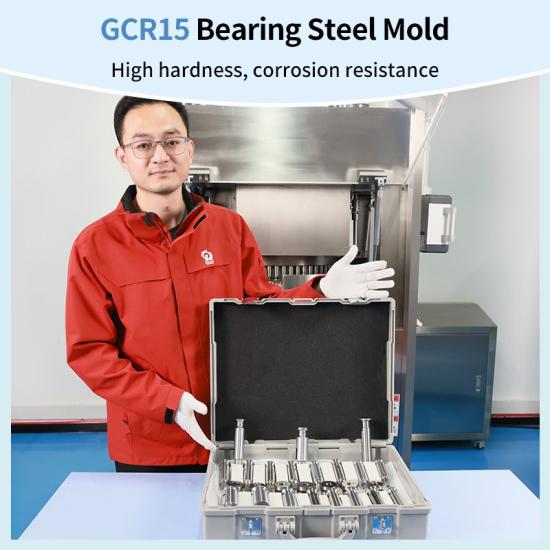

Upper and lower pressure wheel |
GCr15 |
Self manufacture |
|
Upper rail guide |
GCr15 |
Self manufacture |
|

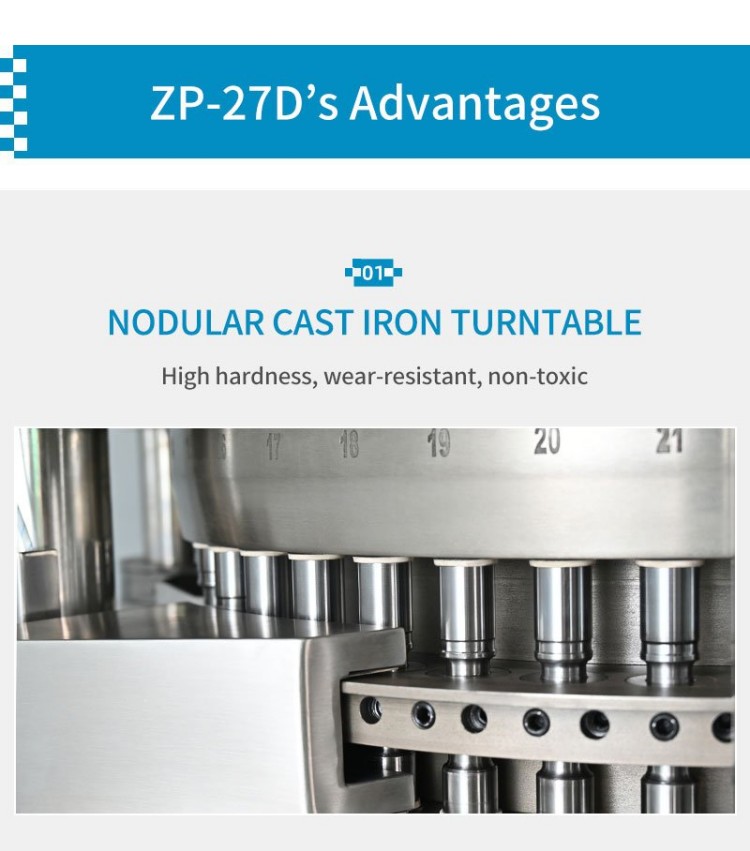

Turntable |
HT250 |
Self manufacture |
|
Air switch |
DZ108 |
Tengen |
|
Hopper |
1Cr18Ni9Ti |
Self manufacture |
|
Scale hand wheel |
Sensitivity:0.1mm |
Shanghai Lichao |
|
Motor |
Y112M-4 |
Shanghai Lichao |
***
This smart good stable pill tablet making machine is surely good performance in creating double output, because it adopts double pressure device and the whole machine is in accord with the CE cGMP production regulation.
***
27D machine has the maximum output of 55000 pieces per hour and the maximum diameter of 25mm.
***
And all spare parts inside the whole pill tablet pressing bin doesn’t have any smell or the harm or the toxicity, and these feature can well assure the safety of medical materials.
*** Certification: SGS, CE, ISO
***
This machine has the very light weight in tableting scale, and it is very outstanding in tablet forming performance and this is because of it has isolated the organic grass from the outside environment.
This pill tablet press machinery has features of the strong hardness and the smooth, and it is durable and this 27 D machine is not only sensible in adjustment but also very stable good in running.
