High Speed Pill Tablet Press Machine
This kind of 29D tablet making machine takes lots advantage of double pressure pattern to create large output of 75000 pieces in one hour. 29D with extremely high efficiency and the extremely high performance. This tablet machine 29D is fully in accord with the stringent regulation of SGS UL and cGMP, and the whole outside body takes full advantage of stainless steel SUS304 material. The tablet pressing bin takes full advantages of organic grass for separating it from the external environment and this Tablet Press Machine is quite good in tablet forming.
*** Technical parameter
|
Dies No. |
29 set |
|
Max. Production Capacity |
75000 pcs/h |
|
Max. Pressure |
100KN |
|
Max. Dia. of Tablet |
25mm |
|
Max. Depth of Filling |
24mm |
|
Max. Thickness of Tablet |
12mm |
|
Dia. Of Middle Die |
Ф38.1mm |
|
Length of Upper/Lower Punching Bar |
115mm/133.4mm |
|
Dia.of Upper/Lower Punching Bar |
Ф25.4mm |
|
Rotary Speed |
5～21 r/min |
|
Motor |
5.5kw |
|
Weight of Machine |
1600kg |
|
Outline Dim. |
1040×910×1690mm |
|
Packing Size |
1340×1100×1960mm |
|

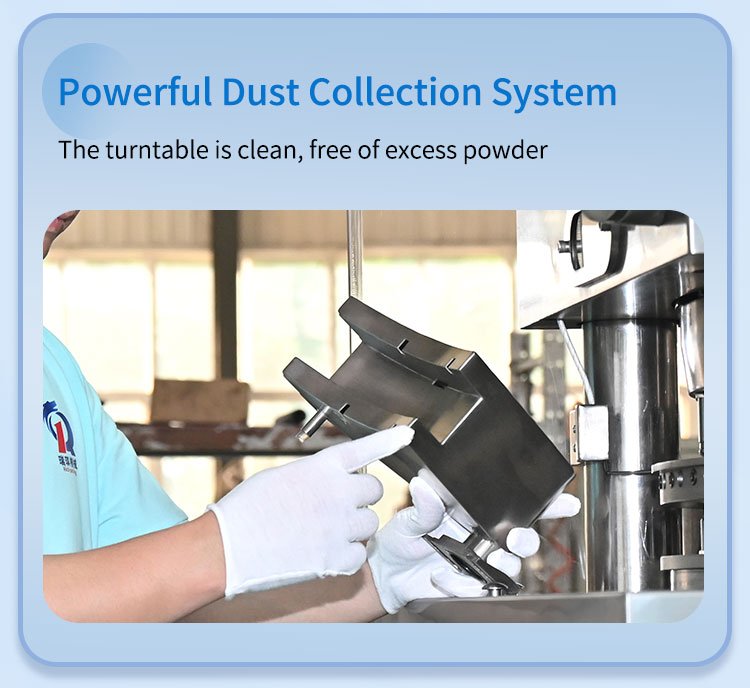

Packing size of Dust Collector |
960×620×1460 mm |
*** Configuration List
|
Item |
Specification and Model |
Manufacturer |
|
Overload protector |
Self design |
Self manufacture |
|
Intelligent lubrication system |
American BIJUR DELIMON |
American BIJUR DELIMON |
|
Frequency converter |
VFD037B43B |
Taiwan Delta |
|
AC contactor |
3TB40 22-OXMO |
Germany Siemens |
|
Relay |
MY-2NJ MY-4NJ |
Japan Omron |
|
Upper and lower pressure wheel |
GCr15 |
Self manufacture |
|
Upper rail guide |
GCr15 |
Self manufacture |
|
Turntable |
HT250 |
Self manufacture |
|
Air switch |
DZ108 |
Tengen |
|
Hopper |
1Cr18Ni9Ti |
Self manufacture |
|
Scale hand wheel |
Sensitivity:0.1mm |
Shanghai Lichao |
|
Motor |
Y112M-4 |
Shanghai Lichao |
|
Shell |
S304 |
Thickness 1.5mm |
|
Glass door |
organic glass |
Thickness 15mm |
*** Dual finished product outlet setting in ZP29D.
Rotary tablet press machine 29D is easily sensible to adjust and it not only has a high degree of accuracy rate but also running stable in the system working and the weight of tablets.
***
This type of machine tableting 29D has high degree PLC of intelligence to well protect both the dies and equipment and it will never leak any oil pollution.
***
This type of popular machine will stop timely and ring timely, when there occur overloading due to its sensible and smart overload protection functions.
*** Certification: SGS, CE, ISO
***
This pill tablet press machine for pharmaceutical will timely add suitable oil to the parts, that need to be lubricated and the amount of oil can be smartly and freely adjusted by the operators.
So this machine is very easy operating for people to maintain, and the quantity of oil can be added differently according to the many different conditions.
All these parts are easy for daily cleaning and maintaining including the molds, and many other parts and no pollution even a little will appear caused by the machine running.
