Types of Tablet Compression Machines

Tablet press is an essential production equipment in pharmaceutical production line. However, in today's market there are many different types of tablet machine equipment to choose from according to the product, output, budget and other factors. Different types of presses have significant differences in performance, scope of application, etc. So how to choose a suitable equipment, which directly affects the efficiency of tablet product production and product quality.This article will thoroughly guide you through the different types of tablet presses, their working principles, key selection criteria, and practical examples to help you choose the most suitable equipment.

1. Classification and Characteristics of Tablet Presses

1.1 Rotary Tablet Press

Working Principle

The rotary tablet press operates by rotating multiple punch dies on a turntable, continuously compressing tablets. This design enables the machine to produce multiple tablets per rotation, significantly boosting production efficiency.

Main Components

- Turntable: Supports the punch dies and facilitates continuous production.

- Punch Dies: Responsible for filling, compressing, and forming the material.

- Feeding Device:Continuous and stable feeding of powdered or granular materials into the mold cavity in a uniform manner.

- Compression Rollers: Apply pressure to the upper punch to form the tablets.

- Ejection Device: Expels the formed tablets from the press.

Advantages

- High Production Efficiency: Produces a large volume of tablets quickly due to multiple workstations.

- High Automation Level: Most operations are automated, reducing manual intervention.

- Precise Tablet Weight Control: Ensures consistency in tablet weight through advanced control systems.

Disadvantages

- Complex Structure: The internal components are intricate, requiring skilled maintenance and operation.

- Higher Maintenance Costs: The complex structure and high usage frequency lead to higher maintenance costs.

Suitable Applications

Rotary tablet presses are ideal for high-volume production, such as large-scale pharmaceutical manufacturing and dietary supplement production, where high efficiency and automation are crucial.

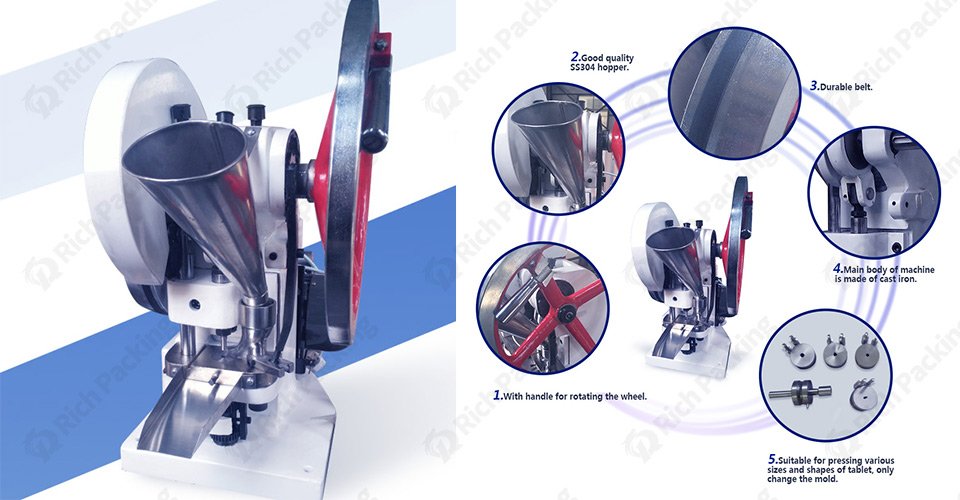

1.2 Single Punch Tablet Press

Working Principle

The single punch tablet press works by moving a single set of punch dies up and down to produce one tablet at a time. This method results in lower production efficiency compared to rotary presses.

Advantages

- Simple Structure: The straightforward design and structure facilitate easy operation and maintenance.

- Easy Operation: Suitable for small-scale production and research, with minimal operational complexity.

- Lower Cost: The simpler design results in lower production costs.

Disadvantages

- Lower Production Volume: Produces only one tablet per cycle, making it less efficient for large-scale production.

- Lower Automation Level: Mainly relies on manual operation, with limited automation features.

Suitable Applications

Single punch tablet presses are best suited for small-scale production and research settings, where high production volume is not a priority, such as in drug development and small batch manufacturing.

1.3 Other Types of Tablet Presses

High-Speed Rotary Tablet Press

Designed for enterprises with extremely high production requirements, this press offers even faster production speeds, suitable for very large-scale manufacturing.

Multilayer tablet press

It is a special kind of tablet pressing equipment which can press powders of different nature into multi-layer tablets at one time. This kind of tablets can realize the layered release of drugs or combine two or more drugs together to achieve better therapeutic effect.

Multi-layer tablet presses work on a similar principle as regular tablet presses in that pressure is applied to compress the powder into tablets. The difference is that a multilayer tablet press has multiple hoppers and dies to fill and press multiple layers of powder at once.

Special-Shaped Tablet Press

Capable of producing tablets in various shapes, this press meets customized needs and is suitable for producing specialty tablets or dietary supplements.

2. Animated Demonstration of Rotary Tablet Press Working Principle

To help you better understand the working process of a rotary tablet press, an HD animation illustrates the entire operation. This dynamic presentation allows you to clearly see the role and interaction of each component, including the turntable's rotation, the movement of the punch dies, and the material filling and forming processes.

3. How to Choose the Right Tablet Press

When selecting a tablet press, consider the following aspects:

Production Scale

Choose a machine based on your annual production volume. For large-scale production, a rotary or high-speed rotary tablet press may be more suitable, while a single punch tablet press might be more cost-effective for smaller operations.

Product Characteristics

Consider the tablet's hardness, disintegration, and dissolution requirements. Different types of presses handle these characteristics differently, so select a machine that meets your quality standards.

Material Characteristics

Different materials have varying requirements for the press, such as stickiness and flowability. Understanding your material’s properties and selecting the appropriate press is crucial for achieving optimal tablet quality.

Budget

While high-automation equipment may have a higher upfront cost, it can reduce long-term operating costs and improve production efficiency.

Automation Level

Consider the trade-off between higher automation (leading to reduced labor and increased efficiency) and increased costs when selecting equipment.

After-Sales Service

Assess the supplier’s after-sales service system to ensure ongoing maintenance and technical support for the equipment. Choosing a supplier with a strong service network helps ensure the long-term reliability of your equipment.

4. Tablet Press Selection Comparison Table

Here is a comparison table of different types of tablet presses to help you visually understand their characteristics and applications:

5. Frequently Asked Questions

During the selection process, you may encounter the following common questions:

How to Choose the Right Punch Dies?

Select punch dies based on the shape and size of the tablets you need to produce. Ensure the dies match your production requirements.

How to Solve Tablet Sticking Issues?

Tablet sticking problems often relate to material properties and machine adjustments. Using appropriate die coatings and adjusting pressure settings can help resolve sticking issues.

Selecting a tablet press is a multifaceted process requiring evaluation of numerous factors. Consult with professionals, attend industry exhibitions, and physically inspect different types of equipment before making a decision. As technology advances, the intelligence of tablet presses will continue to evolve, bringing more innovation to the pharmaceutical industry.
