Pharmacy Tablets Blister Pack Machine

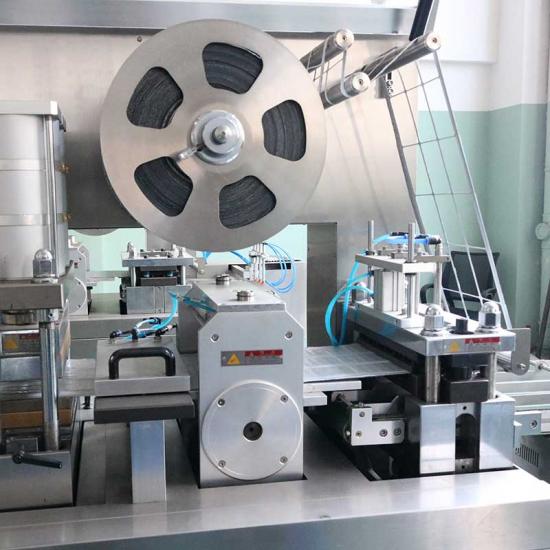

DPP-260R fully automatic servo blister packing machine is a novel product, that is the lately model developed by our Rich Packing company, this kind of blister packer machine has an excellent precision and the excellently stable operation. This kind of 260R machine is convenient and quick to adjust, and the whole packing operation process of this equipment is totally fully automatic, fully in accord with the standards of GMP production. It is perfect machinery for the mass production, and this machine has gained the attention of the whole world, winning the respect and the trust from the customers like UCB, GSK, Guangzhou Pharmaceutical Group, etc.
*** Technical parameter
|
Model |
DPP-260R |
|
Production Capacity |
1.8～236,000pcs/hour |
|
Max. Shaping Dia. And Depth |
250*160*15mmMax. Depth26mm（custom-made） |
|
Blanking |
20～180blisters/min (aluminum plastic) 20～120 blisters/min (aluminum aluminum) |
|
Power of Main Motor |
1.5kW |
|
Total Power |
6.0kW |
|
Power supply |
380V/220V/50Hz |
|
Standard Travel Range |
40～160mm |
|
Standard Plate |
80*57mm |
|
Thickness and Width of PVC |
260×0.15～0.45mm |
|
Thickness and Width of PTP |
260×0.02～0.03mm |
|
Dialyzing Paper |
50～100g*260mm |
|
Vacuum |
0.4MPa-0.6MPa |
|
gas consumption |
≥0.2m3/min |
|
Noise |
<75dBA |
|
Mold Cooling |
Runing water or circulating water It is recommended to use constant temperature cold water 60L/H |
|
Weight |
Net weight 2600kg |
|
Overall Size of Machine |
3500×740×1680 mm(L*W*H) |
***Configuration List.
|
Name |
Spec./Model |
Qty |
Manufacturer |
|
Servo Motor |
ECMA-C20807RS |
1 |
Taiwan taida |
|
server Driver |
server Driver |
1 |
Taiwan taida |
|
PLC main module |
CP1L-M30DR-A |
1 |
Omron |
|
PLC temperature module |
CP1W-TSOO2 |
1 |
Omron |
|
PLC touch screen |
6AV6/648-0BC11-3AX0 |
1 |
Siemens |
|
Encoder |
ZSP3806-003G-1500BZ3-5-24F |
1 |
United States Rip Ann Waco |
|
Main motor |
RC series helical gear motor |
1 |
Suncheon |
|
Frequency converter |
VFD015B43A |
|
taiwantaida |
|
Stainless steel plate |
304 316 |
|
Korea,japan |
|
Switching power supply |
NES-100-24 |
|
Taiwan mingwei |
|
Positioning cylinder |
SDA32×10 |
|
AirTAC |
|
Double pressure reducing valve |
BFC4000-N |
|
AirTAC |
|
The electromagnetic valve |
4V210-08 |
|
AirTAC |
|
Pressure reducing valve |
AC2010-02 |
|
AirTAC |
|
emergency button |
XB2-BS542 |
|
Schneider |
Automatic blister packer machine DPP-260R is safe for people to operate, the safety covers have been equipped to each working station, including the forming, heat-sealing and the punching stations.
This capsule blister machine of DPP-260R has high precision, excellent integration, and very easy and simple for people to use.
Equipped with device like blanking dislocation, photoelectric detection, this 260R machine has the functions of automatic shutdown, so both the molds and the machine can be perfectly protected.
*** Certification: SGS, CE, ISO
***
Automatic blister packer machine DPP-260R is very convenient for customers to maintain, it utilizes centralized modular design, and the electrical appliances of 260r machine utilizes brand-name products.
This machine has the stop device in case the emergency, it can be stopped at once at any time by the operators if there is any emergency.
All parts in contact with drugs materials are non-toxic, and they can anti corrosion, the 260R blister packaging machine's materials are made of 316 stainless steel and the aluminum alloy in high quality, all in accord with GMP standards.
