RQ-LBFK-2000 Aluminum Foil Sealing Machine
*** Technical parameter
Model |
RQ-LBFK-2000 |
Production Capacity |
50-260 bottles/min (related to the size and shape of the bottle) |
Applicable bottle diameter |
φ15~ φ80 mm |
Applicable bottle |
square bottle, flat square bottle and other special shape of bottles) |
Applicable bottle height |
30~260 mm |
Power Supply |
AC220V 50Hz |
Power |
2.0kw |
Cooling system |
Cooling water temperature≤55℃(Indoor temperature≤25℃) |
Outline dim. |
600*450*1300mm |
Weight |
115kg |

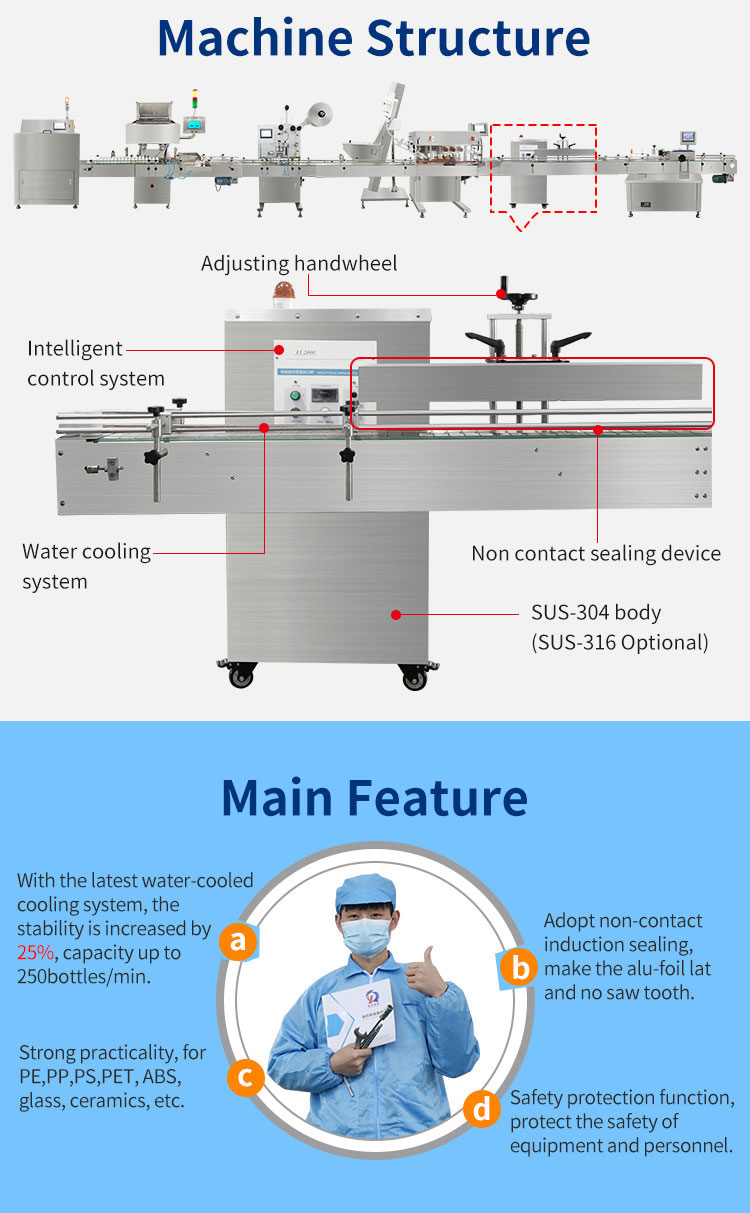

These Rq-lbfk-2000 of our Guangdong Rich Packing is a new type model of the aluminum foils sealing machinery highly developed. It is characterized by the full-automatic, the electronic and the high efficiency. It using the new type water cooling device, it can form the tablet capsule pill gummy counting machine production line together with electronic automatic tablet capsule counting line.
The principles of the aluminum foil sealing machinery is the medium frequency electric field area, the induction and the high-speed eddy current, so that the machinery can seal the bottle mouth and automatic aluminum foil without the any contacting with the plastic or the glass bottles.
The aluminum foil sealing machinery has many advantages of the very firming adhesion, the no cracking in the sealing, the very neat edge after sealing and the no saw tooth, the fast matching production speed and so on and etc.
This RICH PACKING LBFK type is the aluminum foil sealing machinery for the bottles of the health care products, the chemical material products, the pharmaceutical medicine capsules and the pills and the tablets. It is a very practical perfect good machinery for the whole line of production and bottling of several tablets.
Its LBFK’s highest production time efficiency, and according to the shapes and LBFK size of the bottle to distinguish, can make the sealing capacity upper to 250 units in a minute.
