RQ-GZJ-600 Automatic Desiccant Inserter Machine

RQ-GZJ-600 Automatic Desiccant Inserter Machine

***  Technical parameter

This model gzj-600 Desiccant Inserter of the Guangdong Rich Packing is the latest model developed for the high-speed tablet capsule counting production line.

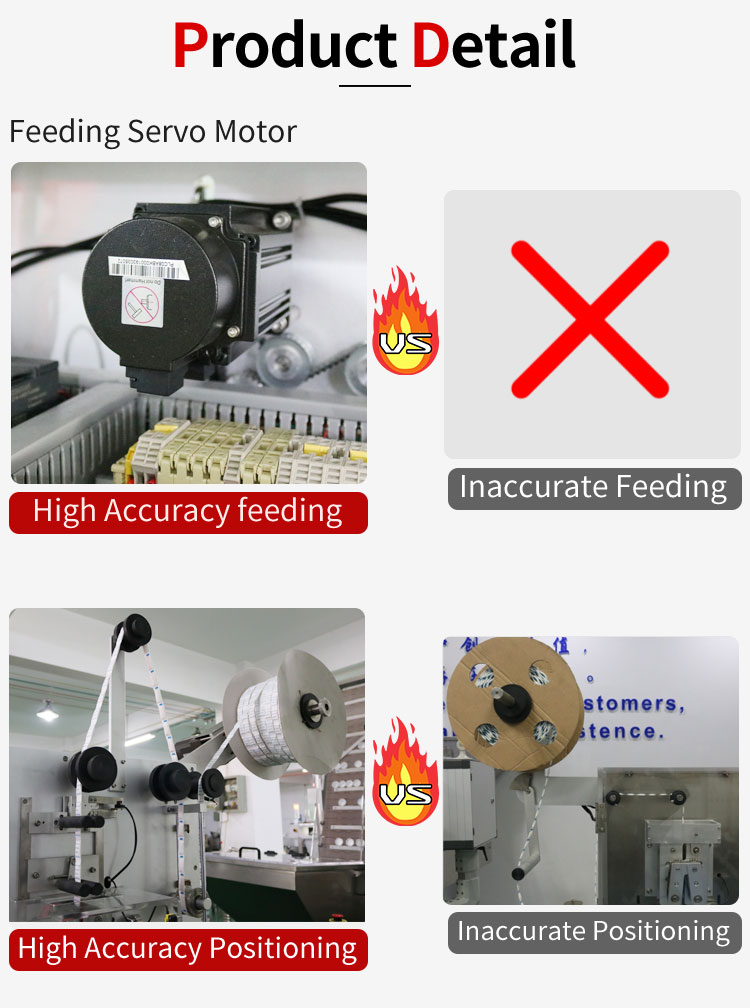

This Desiccant Inserter machinery is different from any other ordinary machines, that directly use the high speed servo motors of more international brands for the operating of adding the materials. Combined with the stepping motors of the other international brands, the high accuracy of automatic adding materials is quite good, that would be with the high accuracy rate of more than 99.99%.
Instead of using the detecting principles of the ordinary machines, this GZJ 600 use the new technology to count the differences between the highest point and the lowest point of the material by the meaning of the roller extrusion, so as to obtain the thickness of the packaging material, and then set the pulling distances of the servo motors.
The cutting tooling is made of the high-quality carbon steels with the cutting angle of 90. the Desiccant Inserter machines is more accurate and more and more faster than the previous scissors cutting.
The Desiccant Inserter system promote up the traditional color code detection (the inaccurate detection), so that the detection effects are better and the inserting speed is faster, capacity can upper to 120 pieces per minute.
