ZP 17 Rotary Making Tablet Press Machine

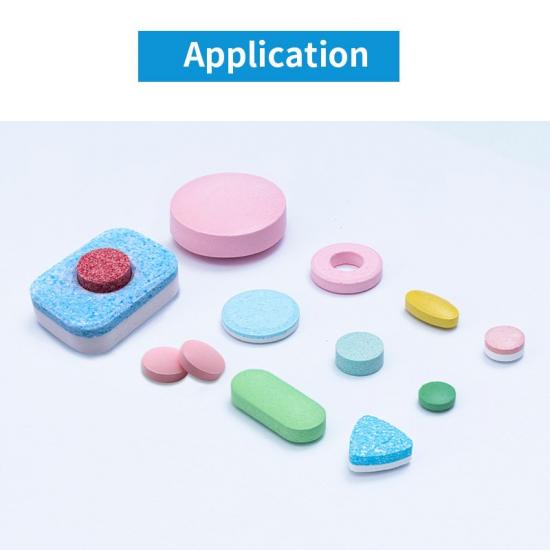

17D for large size tablet press machines not only have a widely range of tablets, but also many products that could be made (pharma, health supplement products, food grade, using daily necessities and etc.) such as tablets, big size as the effervescent tablets, vitamins pills, milk tablets, candies, medical pills, salt tablets and etc.
The tech of the large size pressing tablet machine has a long history of nearly one hundred years, and it first begun in western Europe and the north America. In China main land and Taiwan, the tablet press machinery is the earliest pharma making equipment.
For recent 30 years, with the developed of pharma technology, people have also begun to pay more attention to its quality. The press tablet machines were developed to meet the characteristics of easy or simple operation, the user convenient cleaning, and convenient moulds replacing. It just so happens that 17D type for large size pill tablets press machines meet many people's requirements. And these machines have become our company's hot sales product and is deeply loved. For we can provide all the customers with short delivery time in 10 days, three years free warranty and full life time warranty.
*** Technical parameter
|
Model |
ZP11D |
ZP15D |
ZP17D |
ZP19D |
ZP21D |
|
Dies No. |
11 |
15 |
17 |
19 |
21 |
|
Max. Pressure |
100kn |
80 kn |
60 kn |
60 kn |
60 |
|
Max. Dia. of Tablet |
40mm |
25 mm |
20 mm |
13 mm |
12 mm |
|
Max.DepthofFilling |
28 mm |
15 mm |
15 mm |
15 mm |
15 mm |
|
Max.Thickness of Tablet |
10 mm |
6 mm |
6 mm |
6 mm |
6 mm |
|
Rotary Speed |
20r/min |
30 r/min |
30 r/min |
30 r/min |
30 r/min |
|
Max. Production Capacity |
13200 pc/h |
27000 pc/h |
30600 pc/h |
34200 pc/h |
37800 pc/h |
|
Power |
3.0kw |
||||
|
voltage |
220v/380v |
||||
|
dimension |
890*650*1680mm |
||||
|
weight |
1000kg |
||||
*** Configuration
|
Item |
Manufacturer |
|
Frequency converter |
Danfoss |
|
Breaker |
Tracy |
|
touch screen |
Siemens |
|
Main motor |
Shanghai Hengli |
|
Fuse |
zhengtai |
|
Indicator light |
yijia |
|
Emergency stop switch |
zhengtai |
|
Speed regulating resistance |
keying |
|
Contactor |
zhengtai |
|
Intermediate contactor |
xinling |
|
button |
yijia |
|
Key switch |
Tracy |
|
main body |
HT150 rich packing |
|
Turntable |
HT300 rich packing |
|
Upper roller frame |
HT150 rich packing |
|
Upper and lower pressing wheels |
GCr15 rich packing |
|
Upper and lower rails |
GCr15 rich packing |
|
Worm gear box |
WPWKO155 rich packing |
|
Spindle |
45# rich packing |
