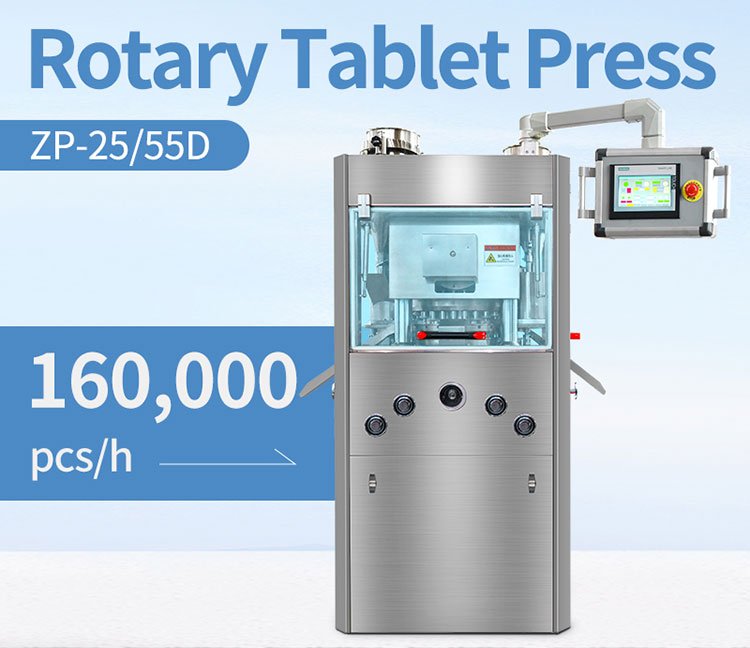

ZP 25/55D Automatic Rotary Pill Tablet Press Machine of Rich Packing
This rotary high speed tablet press machinery can compress the kinds of tablets with the maximum diameter of 25 mm. The max output can exceed to 230,000 pieces in one hour based on the standard size that being the smallest size that can be pressed. Not only for the large diameter special tablets, for the materials of the different meshes or the two colors, it can also be pressed into the two color or multi color tablets pills or the ring shaped tablets pills.
Now the needs for tableting is up increasing, and the making tablets market potentials for the spherical tablets pills is increasing. For those reason, our Guangdong Rich Packing company has specially developed and manufactured these high speed rotary tablet press machine that can compress the large diameter spherical tablets.
For materials which are corrosive or difficulty to compress, our RICH PACKING rotary tablet presses ZP-25D and ZP-55D can also make the disinfection tablets pills, the dishwashing tablets, the detergent tablets and the big size effervescent tablets. In other words, our ZP-25D and ZP-55D perfectly cover the good demands of the pharmaceutical and the daily necessities industry and the health care products industry. We have upgraded the materials machinery to all use SUS 316L on the parts of the machinery in contact with the materials, which can achieve 0 pollution and 0 penetration for the pharmaceutical and food field.
*** Technical parameter
|
Model |
ZP25D |
ZP27D |
ZP31D |
ZP41D |
ZP45D |
ZP55D |
|
Dies No. |
25 |
27 |
31 |
41 |
45 |
55 |
|
Max. Pressure |
100kn |
100 kn |
100 kn |
100 kn |
100 kn |
100 kn |
|
Max. Dia. of Tablet |
25mm |
20 mm |
20 mm |
13 mm |
11 mm |
9 mm |
|
Max.DepthofFilling |
6mm-30 mm |
|||||
|
Max.Thickness of Tablet |
0.5mm-15 mm |
|||||
|
Rotary Speed |
5-30r/min |
|||||
|
Max. Production Capacity |
90000 pc/h |
97200 pc/h |
111600pc/h |
172000pc/h |
189000pc/h |
230000 pc/h |
|
Power |
4.5-5.5kw |
|||||
|
voltage |
220v/380v 50Hz |
|||||
|
size |
1240*850*1850mm |
|||||
|
Weight |
1850kg |
|||||
*** Configuration List
|
Item |
Model |
Manufacturer |
|
Frequency converter |
P/N 132F0028 |
Danfoss |
|
Relay |
MY4N-J24VDC |
Omron |
|
Breaker |
RQDQ-DD1 |
Delixi |
|
Contactor |
3TB40-22-0X |
Siemens,Germany |
|

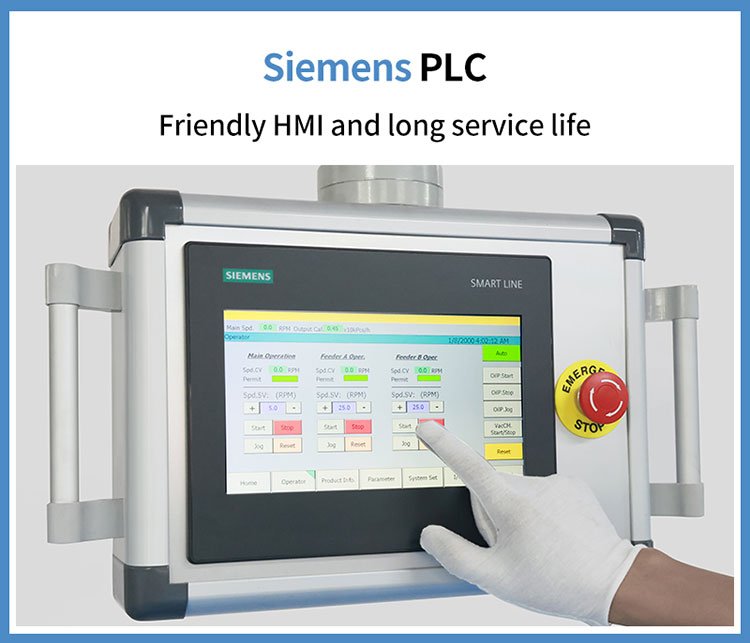

touch screen |
RQDFTY-12 |
Siemens,Germany |
|
Main motor |
RQJD-5.5-7.5 |
Hitec |
|
Inductance ballast |
BPL9W220VB2SC |
Philips |
|
Fuse |
RQQD-1 |
CHNT |
|
Emergency stop switch |
AR22V2R-11R |
Fuji,Japan |
|
Indicator light |
DR22E3L-E4G |
Fuji,Japan |
|
Speed regulating resistance |
RQTS6 |
Keyin |
|
button |
LAY7 |
Huatong |
|
Key switch |
AR22JR-3A11A |
Fuji,Japan |
