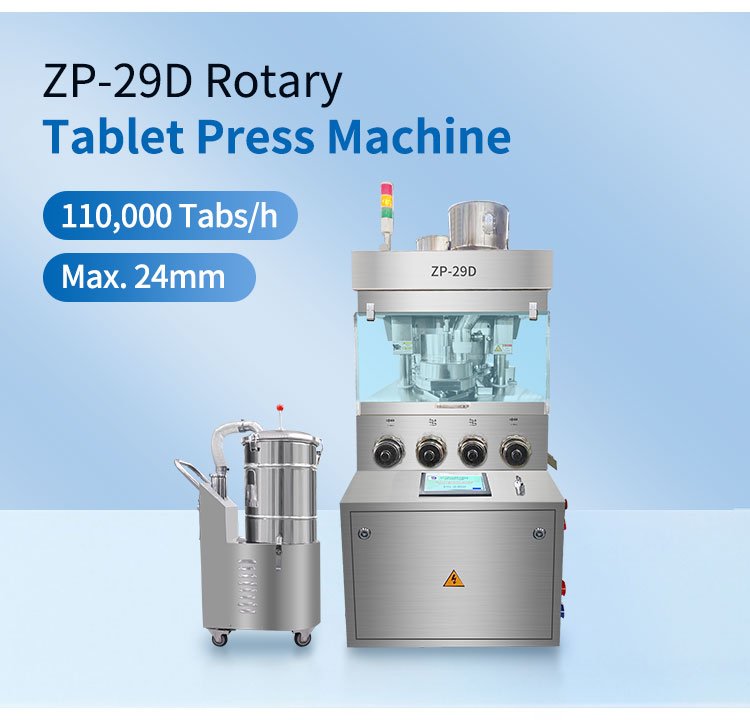

ZP 29 Automatic Rotary Tablet Press Machine By Rich Packing
The 29D tablet press machine is a double-pressure active torsion continuous tablet making machinery developed by our RICH PACKING company, which suppresses the powder granule raw materials into many kinds of special-shaped tablets.
29D is mainly used in field such as daily necessities, electronics, food, and pharmaceuticals.
The outer of machine is completely sealed, and the material is made of stainless steel SUS 304, which conforms to GMP requirement.
It is equipped with a transparent eye viewing window that can clearly see the running status of the machinery, and can be opened completely and easy to clean and maintain internally.
*** Technical parameter
|
Dies No. |
29 set |
|
Max. Production Capacity |
75000 pcs/h |
|
Max. Pressure |
100KN |
|
Max. Dia. of Tablet |
25mm |
|
Max. Depth of Filling |
24mm |
|
Max. Thickness of Tablet |
12mm |
|
Dia. Of Middle Die |
Ф38.1mm |
|
Length of Upper/Lower Punching Bar |
115mm/133.4mm |
|
Dia.of Upper/Lower Punching Bar |
Ф25.4mm |
|
Rotary Speed |
5～21 r/min |
|
Motor |
5.5kw |
|
Weight of Machine |
1600kg |
|
Outline Dim. |
1040×910×1690mm |
|
Packing Size |
1340×1100×1960mm |
|
Packing size of Dust Collector |
960×620×1460 mm |
*** Configuration List
|
Item |
Specification and Model |
Manufacturer |
|
Overload protector |
Self design |
Self manufacture |
|
Intelligent lubrication system |
American BIJUR DELIMON |
American BIJUR DELIMON |
|
Frequency converter |
VFD037B43B |
Taiwan Delta |
|
AC contactor |
3TB40 22-OXMO |
Germany Siemens |
|
Relay |
MY-2NJ MY-4NJ |
Japan Omron |
|
Upper and lower pressure wheel |
GCr15 |
Self manufacture |
|
Upper rail guide |
GCr15 |
Self manufacture |
|

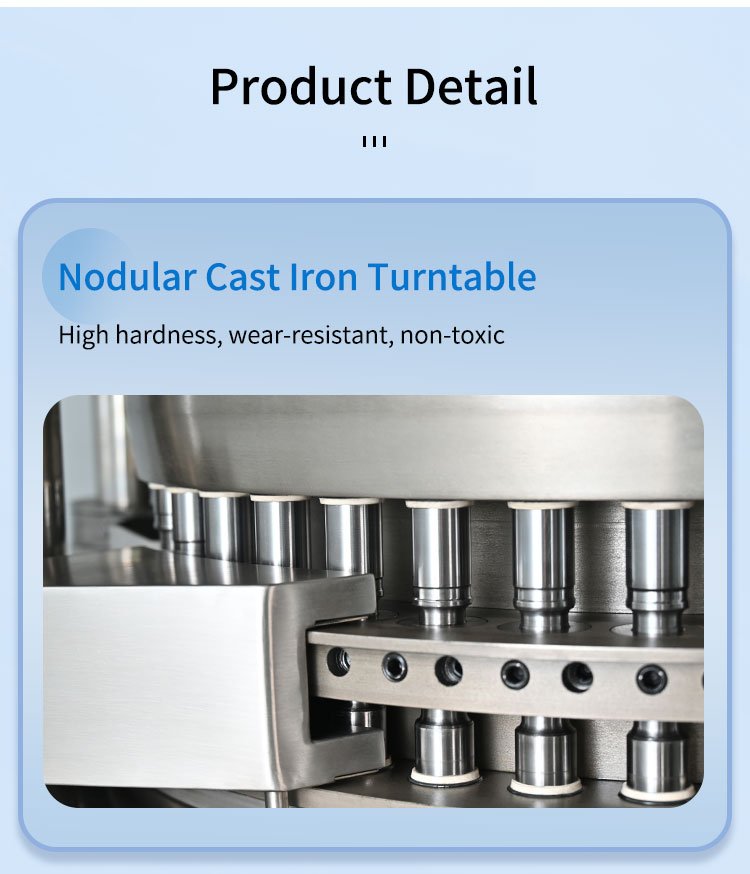

Turntable |
HT250 |
Self manufacture |
|
Air switch |
DZ108 |
Tengen |
|
Hopper |
1Cr18Ni9Ti |
Self manufacture |
|
Scale hand wheel |
Sensitivity:0.1mm |
Shanghai Lichao |
|
Motor |
Y112M-4 |
Shanghai Lichao |
|
Shell |
S304 |
Thickness 1.5mm |
|
Glass door |
organic glass |
Thickness 15mm |
***

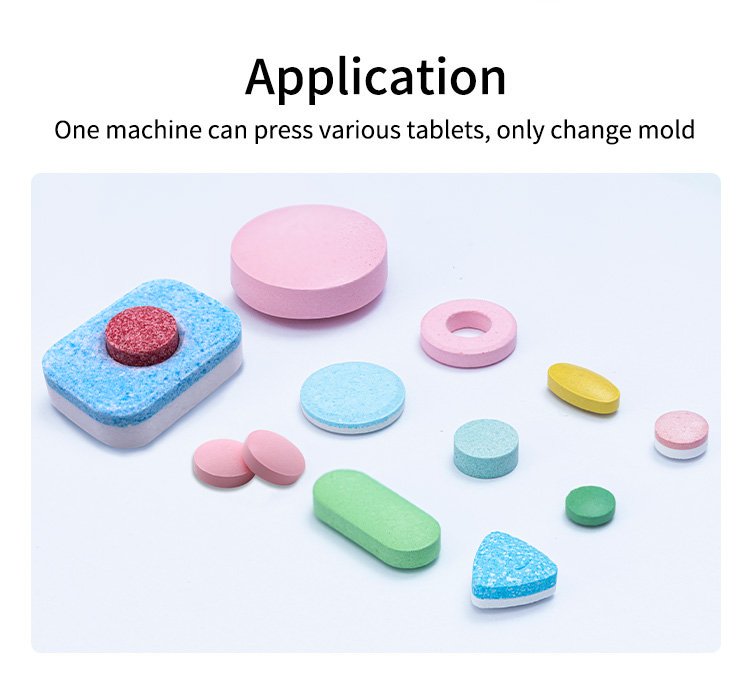

The tablet press has the characteristics of high pressure, the large range of tableting, and it can press the popular and special-shaped, ring-shaped tablets.
***
It is especially suit to various types of small batch production, motor integration and all controllers and the conditioning equipment are concentrated on one side of the machine’s body.
***
Easy for operating and Equipped with the pressure overload maintenance device to prevent the mechanical damage, it adopts the oil-immersed and the smooth transmission structure to be sealed under the 29D’s body, which extends the running and service life and prevents interspersed purification.
*** Certification: SGS, CE, ISO
***
The Rich Packing company has obtained the Guangdong Provincial Trustworthy Enterprise CE, SGS, ISO and the other national certificates.
We has more than 23 professional R&D worker and produces more than 3,350 machines in one year. The 29D tablet press production can be reliable in all time.
