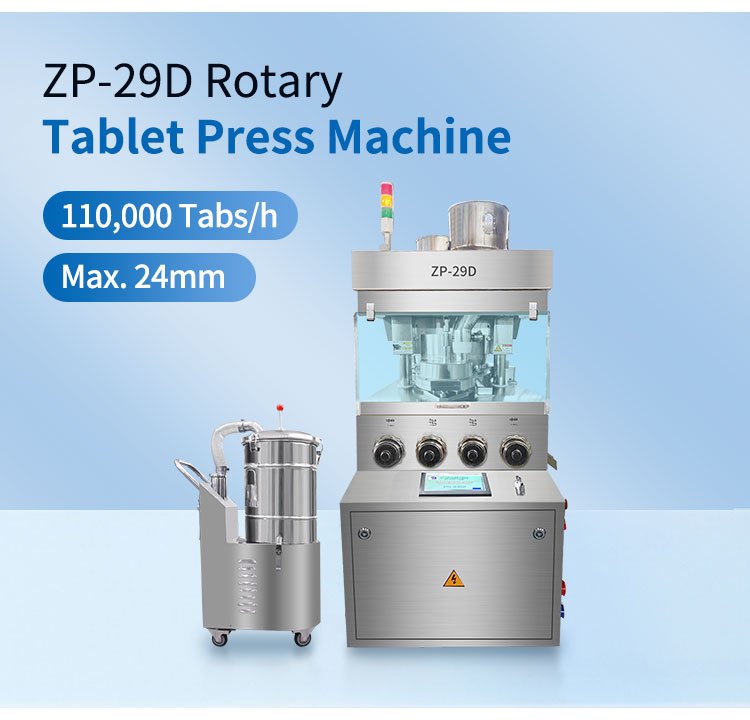

ZP 29D Press Pill Tablet Compress Machine
If you are looking for a China Manufacturer for Rotary Tablet Press Machine which machine can save production space and have better tablet pressing capability, then this ZP29D tablet press from RICH PACKING Company is a quite suitable one for you. Lots of customers find us to buy this machine, many of them because the current machine of they using cannot meet their demands, such as the production of tablets and pills is not tight enough, tablets cause unknown causes of splicing.
Are you still using a rotating tablet to make a tablet and encountering a splinter? There are some reasons for these: For the pressure is too large, when the material meets the pressure increasing, then his expansion degree also increases, the strength of the adhesive could not stop its expansion directly caused by the blades, the treatment way is to reduce the working pressure of the tablet press machine.
When the flakes were caused by the improper granules, loose texture and too much fine granules, the concentration and the dosage of adhesive should be adjusted to improve the granulation way to overcome the problems. And when the powder is too dry, the containing crystal water materials lose too much caused by the splinter, because in pelleting, according to the different varieties should control the water content of the grain. Our ZP29D tablet press machine has eliminated the difficulty of tablet splicing after years of special research and the adjustment.
*** Technical parameter
Dies No. |
29 set |
Max. Production Capacity |
75000 pcs/h |
Max. Pressure |
100KN |
Max. Dia. of Tablet |
25mm |
Max. Depth of Filling |
24mm |
Max. Thickness of Tablet |
12mm |
Length of Upper/Lower Punching Bar |
115mm/133.4mm |
Rotary Speed |
5~21 r/min |
Motor |
5.5kw |
