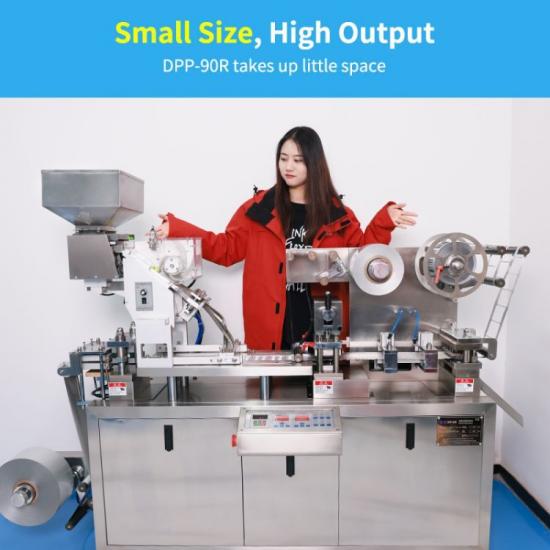

DPP 90R Pharma Small Packaging Blister Packing Machine
The performance of Guangdong RICH PACKING's DPP 90 R new type Blister Package Machine For Pills tablets capsules vape is mainly manifested in the heat sealability of the blister machine. These outstanding blister machine has good drum hot sealing performance, stability, the horizontal blanking without any waste, accurate synchronization, and is deeply welcome by users.
According to the machine blister production experience, it was found that the PVC Alu pet blister packaging machine randomly appeared the titles in blister forming, hot pressing and sealing, the plate blanking, and etc., these are the performance of unstable machinery performance, and the manufacturing company must pay more attention to and improve it.
90R blister packing machinery automatic mini can reduce the rest intensity and improve the rest premise. The rest intensity of manual is very large, for example, manual of large and heavy products consumes much physical strength and is not safe in working condition. And for the light and small products, the frequency is so high and the actions are monotonous. It is so easy for the workers to get occupational diseases.
Our blister packaging machine is beneficial to workers’ rest and the maintenance. Regarding certain products that can seriously affect body health, such as the severely dusty, toxic products, irritating and the radioactive products, manual will inevitably persecute health, while the mechanical can Prevent this situation, and can effectively maintain the situations without being purified.
*** Technical parameter
Model |
DPP-90R |
Blanking |
10~40times/min |
Production Capacity |
2300plates/h |
Max. Shaping Dia. And Depth |
80*110*15mm Max. Depth26mm(custom-made) |
Standard Travel Range |
30~91mm |
Standard Plate |
80*57mm |
Power of Main Motor |
0.75kW |
Total Power |
2.4kW |
Power |
380V/220V/50Hz |
Vacuum |
0.4-0.6Mpa |
Noise |
<75dBA |
Thickness and Width of PVC |
0.15~0.5*120mm |
Thickness and Width of PTP |
0.02~0.035*120mm |
Dialyzing Paper |
50~100g*120mm |
Mold Cooling |
Running water or circulating water |
Weight |
Net weight350 kg Gross weight390 kg |
Overall Size of Machine |
1996*592*1229 mm |
