8D Automated Tablet Counter By Rich Packing
The Why did our Rich Packing enterprise launch the 8D type machinery after have the two innovative models of tablet counting machines of 16R and 16H?
That is because the extensive marketing survey results based on many professional survey institutions show that more small and medium scale enterprises have the demand for counting and filling several tablets and capsules.

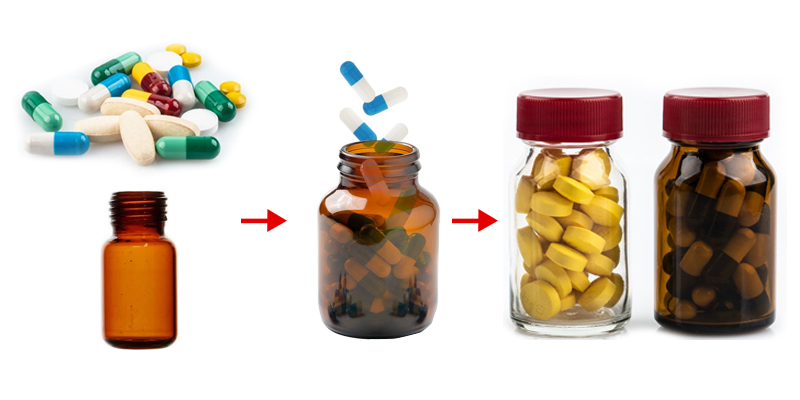

*** Applications
*** Technical parameter
|
Model |
RQ-DSL-8D |
|
Vibration groove tracks |
8 lane |
|
Production capacity |
50 bottles per minute (according to the capacity of 60 capsules per bottle) |
|
Accuracy rate |
＞99.97% |
|
Filling range |
3 ～ 9999 grains |
|
Applicable target |
Tablet:Φ3～25mm ,pill:Φ3～20mm, |
|
Applicable bottle type |
Φ25～75mm round and square bottle, height ≤240 mm |
|
Voltage |
AC380V 3P 50/60HZ |
|
Power |
1.5KW |
|
Pressure |
0.4～0.6Mpa |
|
Air consumption |
105L/min |
|
Hopper capacity |
25L |
|
Weight |
405kg |
|
Outline dim.(mm) |
1100×1400×1800mm（L*W*H） |
*** Configuration List
|
No. |
Item |
Specification |
Qty. |
Manufacturer |
|
1 |
Count Photoelectric Sensor (Receive) |
N24.5R |
8 |
Lattine |
|
2 |
Count Photoelectric Sensor (Emit) |
N24.5E |
8 |
Lattine |
|
3 |
Valve Group |
M4SB10-M5-6 |
1 |
Japan CKD |
|
4 |
Filtrate Regulator |
FR500 |
1 |
Taiwan SHAKO |
|
5 |
PLC Group |
FP∑-C32TH FPO-E16YT |
1 |
Japan Panasonic |
|
6 |
Touch Screen |
GE4408W |
1 |
Japan Pro-face |
|
7 |
Cable Diffuse Sensor |
QS18VN6DB |
3 |
USA.BANNER |
|
8 |
AC Contactor |
GMC-9 |
1 |
Korea LG |
|
9 |
DC Contactor |
GMD-9 |
3 |
Korea LG |
|
10 |
Thermal Overlood Relay |
GTH-22/3 |
1 |
Korea LG |
|
11 |
Count Cylinder |
SCPS2-1030 |
8 |
Japan CKD |
|
12 |
Position Cylinder |
SDA20-10 |
4 |
AIRTAC |
|
13 |
Control Box |
131200000 |
1 |
Germany MECANO |
|
14 |
Directive Signal Light |
AL6M-P |
3 |
Japan IDEC |
|
15 |
Button Switch |
ABW310EG |
1 |
Japan IDEC |
The corresponding market potential for this type of user customer is that the appearance size is smaller, and it needs more than 90% of the functions of a large-scale counting machine at the same time.
The design concept of the 8D tablet counting machine is derived from the enrichment strategy of the high-end counting machinery models RQ DSL 16h and RQ DSL 16r developed by our company.
The 8D type adopts a vibration orbit that can adjust the oscillation channel frequency.
Even if the number of the orbits has been reduced by half to eight channels, the efficiency of counting machine has reached the level of ordinary sixteen channels counting machines through our innovation and research and development.
*** Certification: SGS, CE, ISO, GMP
***
If calculated according to one bottle of counting and filling as 60 pieces of material, our capsule counting machine is 3000 bottles in one hour, which is so equivalent to completing the filling and counting of 180,000 pieces of material.
In terms of the multiple material feeding ports, we also adopted the pneumatic feeding device that is only used for the high-end machines, which can accurately feed the tablets, the capsules and the small objects into bottles when counting materials.
