Specially Counting Pectin Gummy Candy Counter Machine By Rich Packing

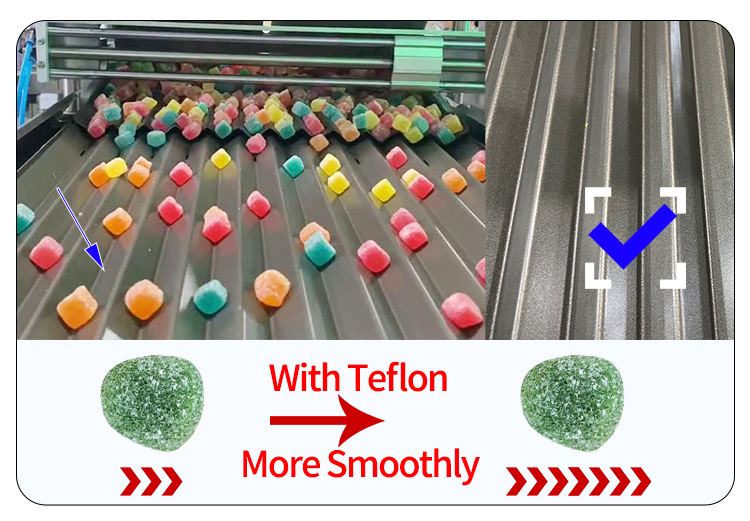

Gummy Candy Counting Machine is a counting machine suitable for pharmaceuticals, hospitals, food and other industries in medicine, food and other industries. This machine is especially designed for accurate and easy-to-operate counting of viscous materials. The contact surface of the counting machine is made of stainless steel and coated with Teflon material. It is an ideal special equipment for calculating bottled, bagged and canned products in various related industries.
Human Factors Affecting the Accuracy of a Candy Counting Machine: The technician did not preheat the machine before starting it up as required by the operating procedure. Or the technicians do not replenish the materials in the silo in time during operation, which affects the separation state of the materials on the oscillating plate, which will lead to inaccurate product counts.
Machine coefficients that affect the accuracy of the pectin fudge counting machine: for example, the design of the silo does not take into account changes in gravity, which will affect the flow and ordering of the material in the oscillating plate; memory baffles and falling shields between The gap is too large and the material is too long to drop. The material rotates in the falling particles and cannot fall into the bottle in time, causing many inaccuracies; the candy particle cover is made of plexiglass material, and the material falls freely from the detection channel in the cover. High-speed rotating friction generates static electricity, or some sugar components also generate static electricity during the friction process. The effective amount of material adsorbed on the falling particle hood falling into the bottle is reduced and several particles are also inaccurate.
*** Technical parameter
|
Model |
RQ-DSL-16R |
|
vibration groove tracks |
16 lane |
|
Production capacity |
200,000 ～ 360,000 grains/h |
|
accuracy rate |
＞99.97% |
|
Filling range |
3 ～ 9999 grains |
|
Applicable target |
Tablet:Φ3～25 mm ,pill:Φ3～20 mm, |
|
Applicable bottle type |
Φ25～75 mm round and square bottle, height ≤240 mm |
|
voltage |
AC380V 3P 50 / 60HZ |
|
power |
2.2 KW |
|
pressure |
0.4～ 0.6 Mpa |
|
Air consumption |
120 L/min |
|
Hopper capacity |
45 L |
|
weight |
650 kg |
|
Outline dim.(mm) |
1200×1550×1750 mm |
*** Configuration List
|
No. |
Item |
Specification |
Qty. |
Manufacturer |
|
1 |
Count Photoelectric Sensor (Receive) |
N24.5R |
16 |
Lattine |
|
2 |
Count Photoelectric Sensor (Emit) |
N24.5E |
16 |
Lattine |
|
3 |
Valve Group |
M4SB10-M5-6 |
2 |
Japan CKD |
|
4 |
Filtrate Regulator |
FR500 |
1 |
Taiwan SHAKO |
|
5 |
PLC Group |
FP∑-C32TH FPO-E16YT |
1 |
Japan Panasonic |
|
6 |
Touch Screen |
GE4408W |
1 |
Japan Pro-face |
|
7 |
Cable Diffuse Sensor |
QS18VN6DB |
3 |
USA.BANNER |
|
8 |
AC Contactor |
GMC-9 |
1 |
Korea LG |
|
9 |
DC Contactor |
GMD-9 |
3 |
Korea LG |
|
10 |
Thermal Overlood Relay |
GTH-22/3 |
1 |
Korea LG |
|
11 |
Count Cylinder |
SCPS2-1030 |
16 |
Japan CKD |
|
12 |
Position Cylinder |
SDA20-10 |
4 |
AIRTAC |
|
13 |
Control Box |
131200000 |
1 |
Germany MECANO |
|
14 |
Directive Signal Light |
AL6M-P |
3 |
Japan IDEC |
|
15 |
Button Switch |
ABW310EG |
1 |
Japan IDEC |
