ZH-120W Pharmaceutical Automatic Cartoner Cartoning Machine

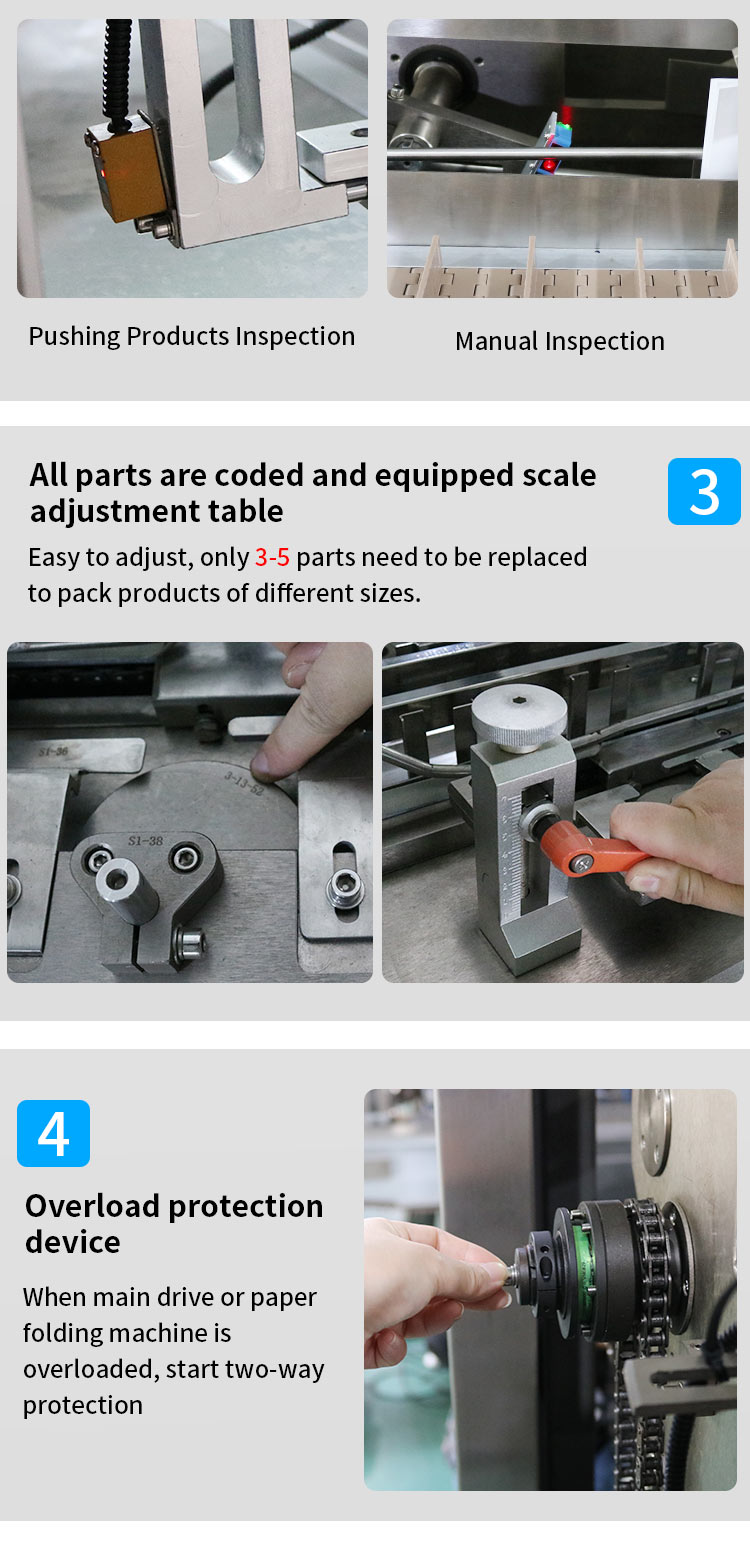

This kind of tube bottle automatic cartoner machine 120W is very safe for anyone to use, because it has the overload protection function setting which can ensure safety of people successfully well. This type of machine has 100% accuracy rate in checking errors, and this machine running good rapidly and steadily. Many sizes of products can be successfully changed by people and they can be changed quickly and conveniently. This box packing cartoning machine 120W ensure the good quality of all parts of this 120W machine, because 120W utilizes all world famous brands of materials to produce them.
This machine is good at all types of mass productions of 24 hours because it is steady in operating and very good in performance. This machine has adopted famous brands of control appliances to make sure the quality, is always running good and it has been so popular among all the customers due to its good performance.
This kinds of 120W packaging cartoning machine has been sold to numerous places including all places in China and all places overseas, and this machines have been popular in all over the world. Our Rich Packing company has factories and teams and all of these equipment research experts are very professional. This machine 120W is very good in cartoning small things and finished things are so perfect that everyone loves it.
*** Technical parameter
|
Model |
RQ-ZH-12OW |
|
Speed |
30-125 carton/min |
|
Total power |
0.750 KW |
|
Powersupply |
220/380V 50Hz |
|
Requirements of carton |
size range of carton:L(70-185)*W(35-90)*H(14-50)mm |
|
carton weight:250-350g/㎡ |
|
|
Requirements of instructions |
size range of instructions:L(78-250)*W(90-170)mm |
|
range of folding times of instructions:1-4 fold |
|
|
instructions weight:60-70g/㎡ |
|
|
Pressure |
pressureintensity:≥0.6MPa |
|
air consumption:120-160 L/min |
|
|
Overall size of machine |
4300*1100*1550㎜ |
|
Net weight of machine |
about1600kg |
***Configuration List
|
Item |
Specification |
Qty. |
Manufacturer |
|
Servo motor |
400W MHMD042G1U |
1 |
Panasonic |
|
Servodriver |
400W MBDHT2510E |
1 |
Panasonic |
|
Main motor |
R17DT80N41.1KW/220V/380V |
1 |
GermanySEW |
|
Vacuum pump |
VT4.40 |
1 |
BECKER |
|
Frequencyconverter |
FC-051P1K5S2E20H |
1 |
Danfoss |
|
Air circuit breaker |
DZ47-D63/2P |
1 |
Yaohua |
|
Air circuit breaker |
DZ47-D63/1P |
3 |
Yaohua |
|
Relay |
MY2NJ/24VDC |
8 |
Japan Omron |
|
Touch screen |
GC—4408W |
1 |
Proface |
|
Switch power supply |
NES-100-24V |
1 |
Taiwan MIWE |
|
Power switch |
T0-2-1/EA/SVB |
1 |
Germany Moeller |
|
PLC |
Smart ST40 |
1 |
Germany Siemens |
|
Fiber amplifier |
E3X-NA11 |
8 |
Japan Omron |
|
Optical fiber |
E32-ZD200 |
8 |
Japan Omron |
|
Encoder |
E6B2-CWZ6C |
1 |
Japan Omron |
|
Proximity switch |
TL-Q5MC1 |
1 |
Japan Omron |
|
Photoelectric switch |
D-73277 |
2 |
Germany LEUZE |
|
Photoelectric switch |
GTE6-N-1212 |
1 |
Japan Omron |
|
Solenoid valve |
VQ21A1-5G-C8 |
1 |
Japan SMC |
|
Filter pressure relief valve |
AW30-03E |
1 |
Japan SMC |
|
Solenoid valve |
VP342R-5GD1-02A |
1 |
Japan SMC |
|
Solenoid valve |
VP542R-5GD1-03A |
5 |
Japan SMC |
|
Solenoid valve |
VQ2321-5G1-02 |
4 |
Japan SMC |
|
Vacuum occur device |
ZH20DS-03-04-04 |
2 |
Japan SMC |
|
Silencer |
AN402-04 |
2 |
Japan SMC |
|
Sucker |
KPS6-WS |
10 |
Korea VTEC |
|
Cylinder |
CO20B20-10DC |
3 |
Japan SMC |
|
Pressure switch |
QPM11-N0 |
1 |
AEK |
|
Magnetic switch |
CS1-S |
1 |
AOTAI |
|
Emergency stop button |
ZB2-BE102C |
1 |
France Schneider |
