ZP 17D Automatic Large Size Tablet Press Machine By Rich Packing
*** Technical parameter
|
Model |
ZP11D |
ZP15D |
ZP17D |
ZP19D |
ZP21D |
|
Dies No. |
11 |
15 |
17 |
19 |
21 |
|
Max. Pressure |
100kn |
80 kn |
60 kn |
60 kn |
60 |
|
Max. Dia. of Tablet |
40mm |
25 mm |
20 mm |
13 mm |
12 mm |
|
Max.DepthofFilling |
28 mm |
15 mm |
15 mm |
15 mm |
15 mm |
|
Max.Thickness of Tablet |
10 mm |
6 mm |
6 mm |
6 mm |
6 mm |
|
Rotary Speed |
20r/min |
30 r/min |
30 r/min |
30 r/min |
30 r/min |
|
Max. Production Capacity |
13200 pc/h |
27000 pc/h |
30600 pc/h |
34200 pc/h |
37800 pc/h |
|
Power |
3.0kw |
||||
|
voltage |
220v/380v |
||||
|
dimension |
890*650*1680mm |
||||
|
weight |
1000kg |
||||
*** Configuration
|
Item |
Manufacturer |
|
Frequency converter |
Danfoss |
|
Breaker |
Tracy |
|
touch screen |
Siemens |
|
Main motor |
Shanghai Hengli |
|
Fuse |
zhengtai |
|
Indicator light |
yijia |
|
Emergency stop switch |
zhengtai |
|
Speed regulating resistance |
keying |
|
Contactor |
zhengtai |
|
Intermediate contactor |
xinling |
|
button |
yijia |
|
Key switch |
Tracy |
|
main body |
HT150 rich packing |
|
Turntable |
HT300 rich packing |
|
Upper roller frame |
HT150 rich packing |
|
Upper and lower pressing wheels |
GCr15 rich packing |
|
Upper and lower rails |
GCr15 rich packing |
|
Worm gear box |
WPWKO155 rich packing |
|
Spindle |
45# rich packing |

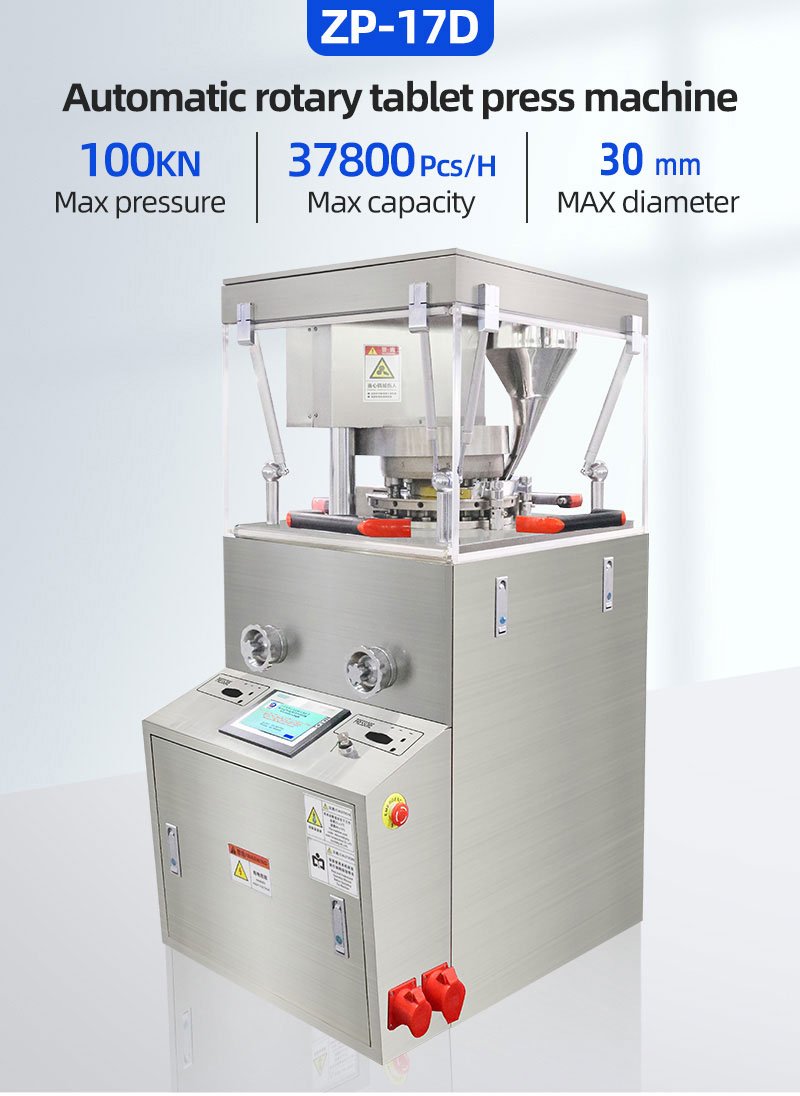

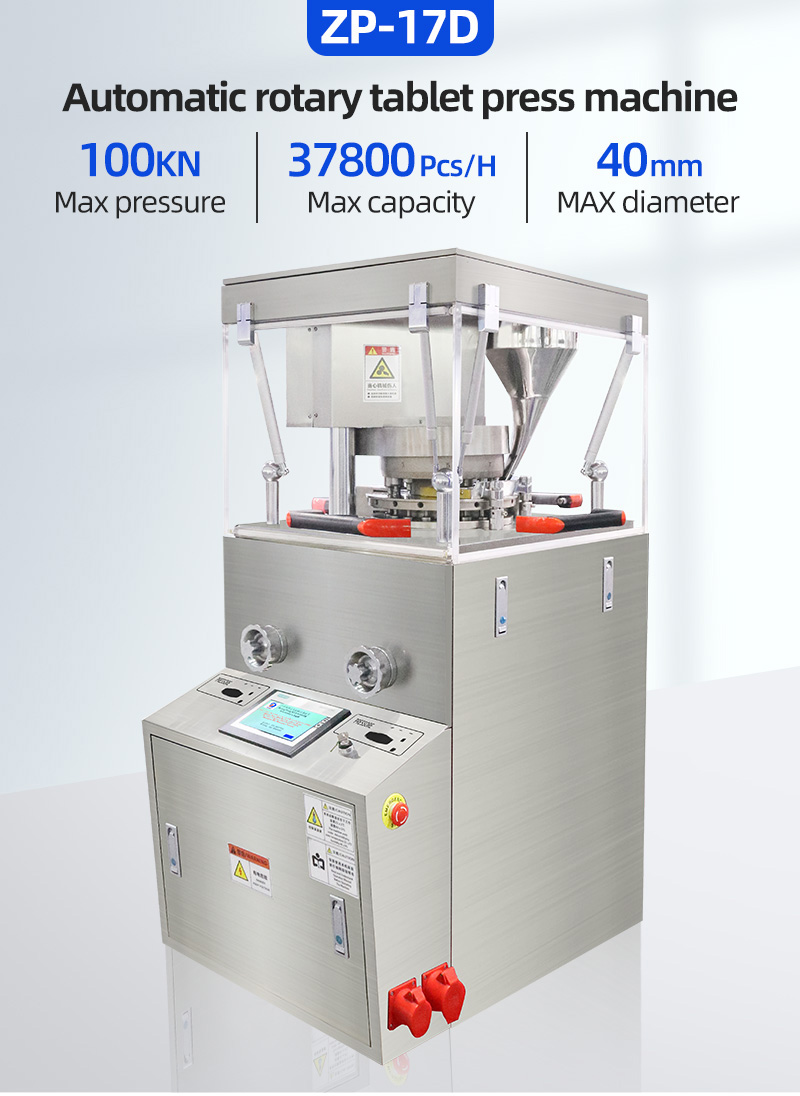

17D rotary pill press tablet press machine is suitable for the big size tablets compression of a variety of tablets, the ordinary round tablets, irregularly shaped tablets pills and the ring shaped tablets with a wide range of tableting compression.
Not only does 17D ZP have a wide range of tablets pills, but its suitable pressing products are also very wide. Such as the tablets, effervescent tablets, the vitamin tablets, the health care products, candy, milk tablets, the mothballs and so on.The ZP 17 D series machinery can be used to produce the large size effervescent laundry tablets and detergent tablets with the maximum diameter to 40 MM. The maximum production capacity per hour is close to 40,000 grains, which is more than twice that of the ordinary version of ZP-579, and it uses the smallest space to achieve the best goal.
Because the rotary pill press tablet press machine is suitable for a wide variety of pills and tablets, safety first is our philosophy. These concepts runs through the feeding, pressing, the hard turntable, emergency stop device, the discharging and other links to ensure that every step is safe.
Now, what users are after is the shape and size of the product. so the 17D rotary pill press tablet press machine, can meet the demands of customers for tablets and arouse customers' desire to buy.
