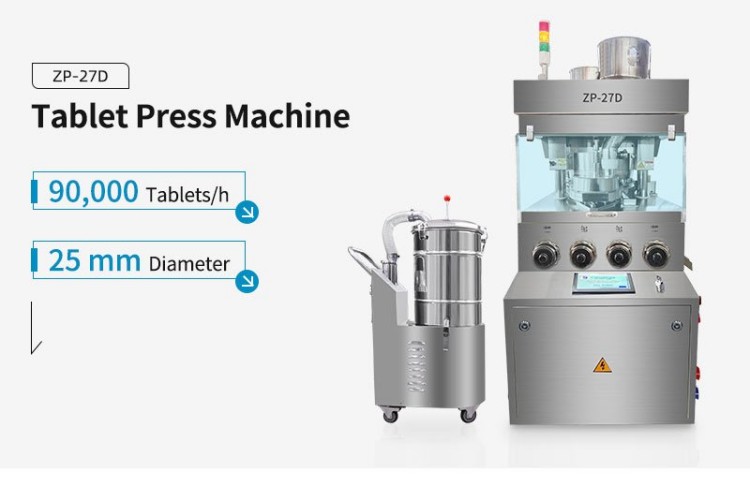

ZP-27D Tablet Pressing Machine By Rich Packing
Why did our RICH PACKING Group develop and manufacture the ZP series 27D rotary tablet press? We strictly release the forged cast iron whose internal stress exceeds 12 months by purchasing. Our team skilled workers process these cast irons into an rotating integrated middle mold, and the built-in pr-compressed rails through the CNC machining tool center, thus what ensuring that the 27D has a high-efficiency pressure and pr-formed pressure and completes the manufacturing of various shapes of tablets.
*** Technical parameter
|
Dies No. |
29 set |
|
Max. Production Capacity |
75000 pcs/h |
|
Max. Pressure |
100KN |
|
Max. Dia. of Tablet |
25mm |
|
Max. Depth of Filling |
24mm |
|
Max. Thickness of Tablet |
12mm |
|
Dia. Of Middle Die |
Ф38.1mm |
|
Length of Upper/Lower Punching Bar |
115mm/133.4mm |
|
Dia.of Upper/Lower Punching Bar |
Ф25.4mm |
|
Rotary Speed |
5～21 r/min |
|
Motor |
5.5kw |
|
Weight of Machine |
1600kg |
|
Outline Dim. |
1040×910×1690mm |
|
Packing Size |
1340×1100×1960mm |
|
Packing size of Dust Collector |
960×620×1460 mm |
*** Configuration List
|
Item |
Specification and Model |
Manufacturer |
|
Overload protector |
Self design |
Self manufacture |
|
Intelligent lubrication system |
American BIJUR DELIMON |
American BIJUR DELIMON |
|
Frequency converter |
VFD037B43B |
Taiwan Delta |
|
AC contactor |
3TB40 22-OXMO |
Germany Siemens |
|
Relay |
MY-2NJ MY-4NJ |
Japan Omron |
|
Upper and lower pressure wheel |
GCr15 |
Self manufacture |
|
Upper rail guide |
GCr15 |
Self manufacture |
|

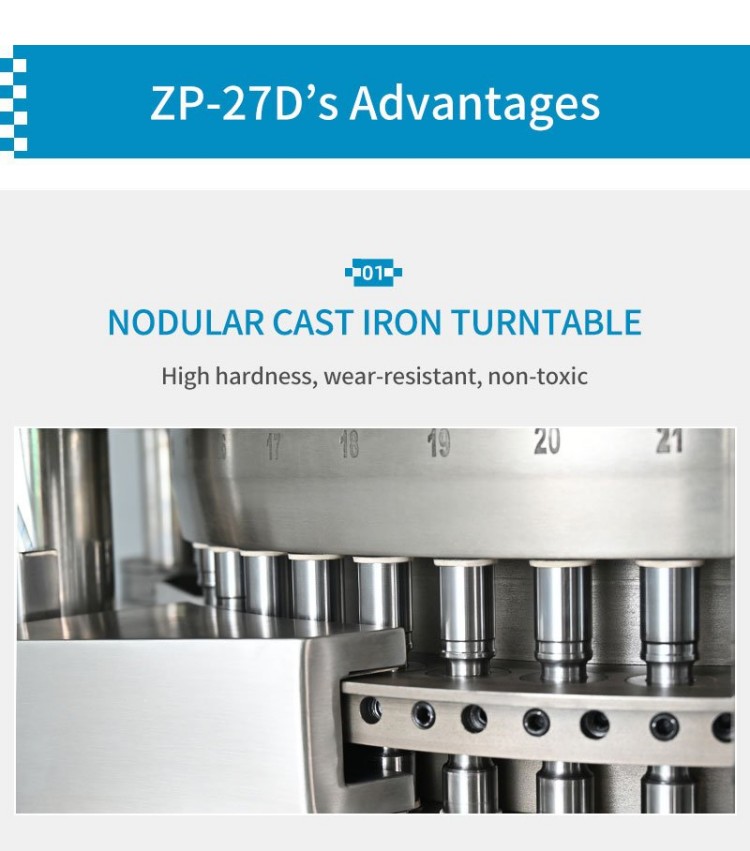

Turntable |
HT250 |
Self manufacture |
|
Air switch |
DZ108 |
Tengen |
|
Hopper |
1Cr18Ni9Ti |
Self manufacture |
|
Scale hand wheel |
Sensitivity:0.1mm |
Shanghai Lichao |
|
Motor |
Y112M-4 |
Shanghai Lichao |
|
Shell |
S304 |
Thickness 1.5mm |
|
Glass door |
organic glass |
Thickness 15mm |
***
The double pressure rotary tablet press 27D model is superior in quality and has a long service life.
***
The reasons for this is that we have buy and selected the electrical components from internationally mature major brands.
***
The high-precision electrical components of the Siemens of West Europe Germany, east Asia Japan's River Valley Group and the French Baker are all scientifically and rationally applied to the interior of our 27D tablet press machine.
*** Certification: SGS, CE, ISO
***

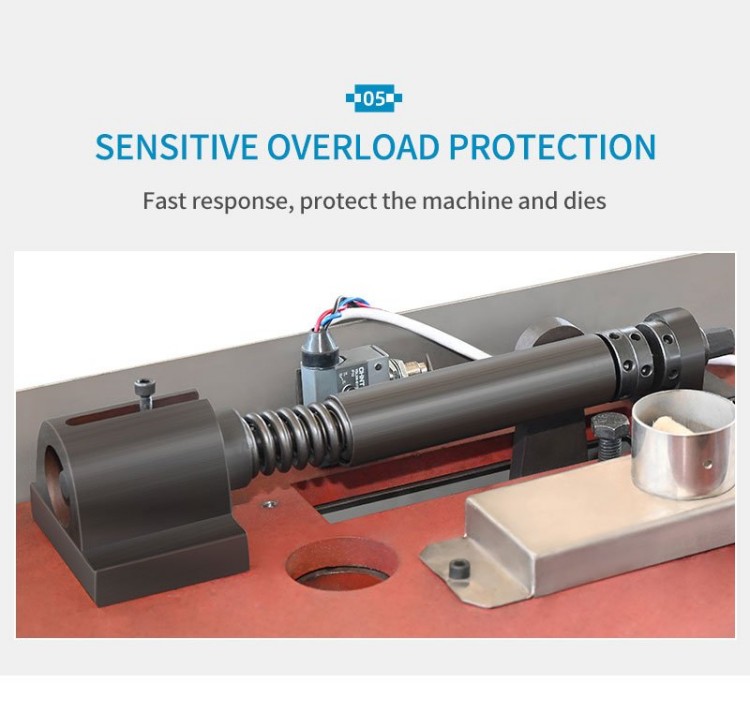

Different from the common knowledge of other company and users, this 27d rotary tablet press is equipped with the two high sensing precision pressure springs on the top of the tablet machine.
This design is a necessary device to fully ensure that the 27D machine is not damaged to prevent excessive pressure.
This equipment starts the overload maintenance response through the spring pressure, and then the alarm notice light reminds and actively stops.
It applies a fair torque principles to maintain molds and machinery.
Unlike the previous hydraulic overload maintenance device, it has the rapid response speed and oil-free purification.
