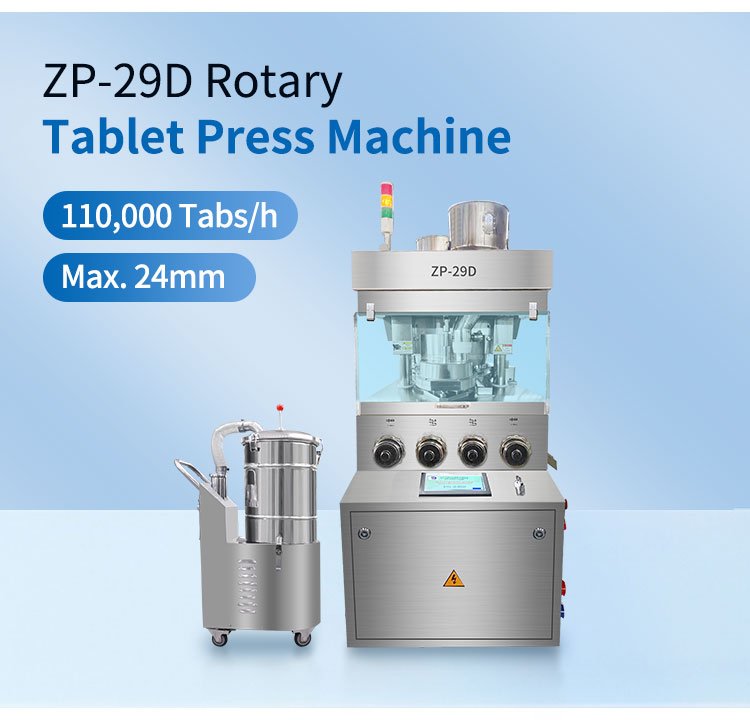

ZP 29 Tablet Press Machine By Rich Packing
Why is this large pressing tablet making machine 29D so hot sale in the whole world?
Because it can provide a large tablet output in one minute and achieves a high working efficiency, it can achieve high performance under the premise of paying a working cost.
The 29D rotary tablet press adopts the form of the double compression, which is so equivalent to the roles played by two machines in the same space and at the same time.
*** Technical parameter
|
Dies No. |
29 set |
|
Max. Production Capacity |
75000 pcs/h |
|
Max. Pressure |
100KN |
|
Max. Dia. of Tablet |
25mm |
|
Max. Depth of Filling |
24mm |
|
Max. Thickness of Tablet |
12mm |
|
Dia. Of Middle Die |
Ф38.1mm |
|
Length of Upper/Lower Punching Bar |
115mm/133.4mm |
|
Dia.of Upper/Lower Punching Bar |
Ф25.4mm |
|
Rotary Speed |
5～21 r/min |
|
Motor |
5.5kw |
|
Weight of Machine |
1600kg |
|
Outline Dim. |
1040×910×1690mm |
|
Packing Size |
1340×1100×1960mm |
|
Packing size of Dust Collector |
960×620×1460 mm |
*** Configuration List
|
Item |
Specification and Model |
Manufacturer |
|
Overload protector |
Self design |
Self manufacture |
|
Intelligent lubrication system |
American BIJUR DELIMON |
American BIJUR DELIMON |
|
Frequency converter |
VFD037B43B |
Taiwan Delta |
|
AC contactor |
3TB40 22-OXMO |
Germany Siemens |
|
Relay |
MY-2NJ MY-4NJ |
Japan Omron |
|
Upper and lower pressure wheel |
GCr15 |
Self manufacture |
|
Upper rail guide |
GCr15 |
Self manufacture |
|
Turntable |
HT250 |
Self manufacture |
|
Air switch |
DZ108 |
Tengen |
|
Hopper |
1Cr18Ni9Ti |
Self manufacture |
|
Scale hand wheel |
Sensitivity:0.1mm |
Shanghai Lichao |
|
Motor |
Y112M-4 |
Shanghai Lichao |
|
Shell |
S304 |
Thickness 1.5mm |
|
Glass door |
organic glass |
Thickness 15mm |
***

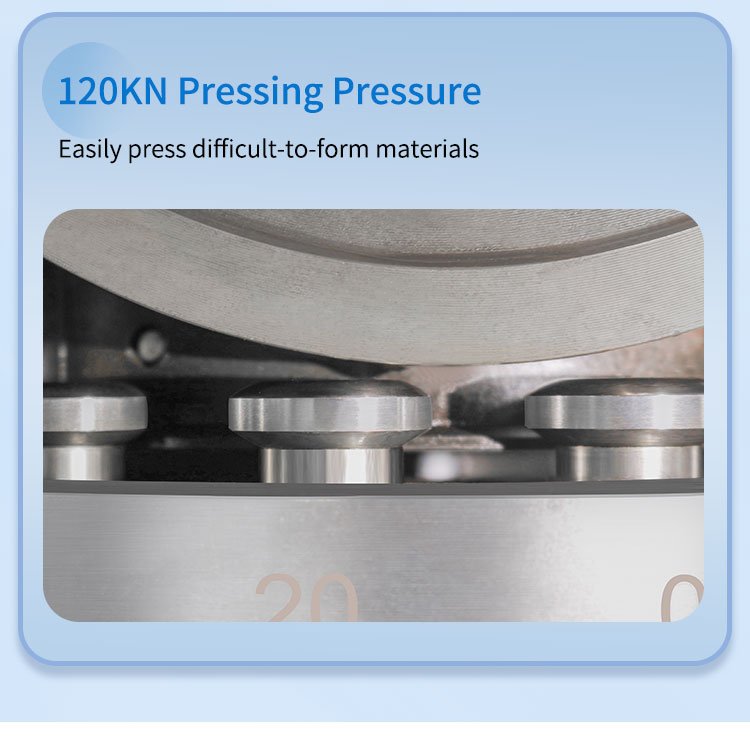

The upper, middle and lower dies of the 29D are equipped with 29 dies, and each of the die provides the maximum pressure of 100KN during pressing operation, thus realizing the size of the formed tablets with a diameter of max up to 24mm.
***
The customized middle molds can realize tablets with the maximum thickness of 17 mm under the action of upper and lower dies.
***
Our 29D double pressure rotary tablet press can make more than 1200 tablets per minute in the double press working mode.
*** Certification: SGS, CE, ISO
***
The position of the turntable where the middle die is located is forged from the single piece of ductile iron.
We have thoroughly inspected the material supplier before purchasing. Only the ductile iron that has been completely left for over 12 months can enter our raw material warehouse.

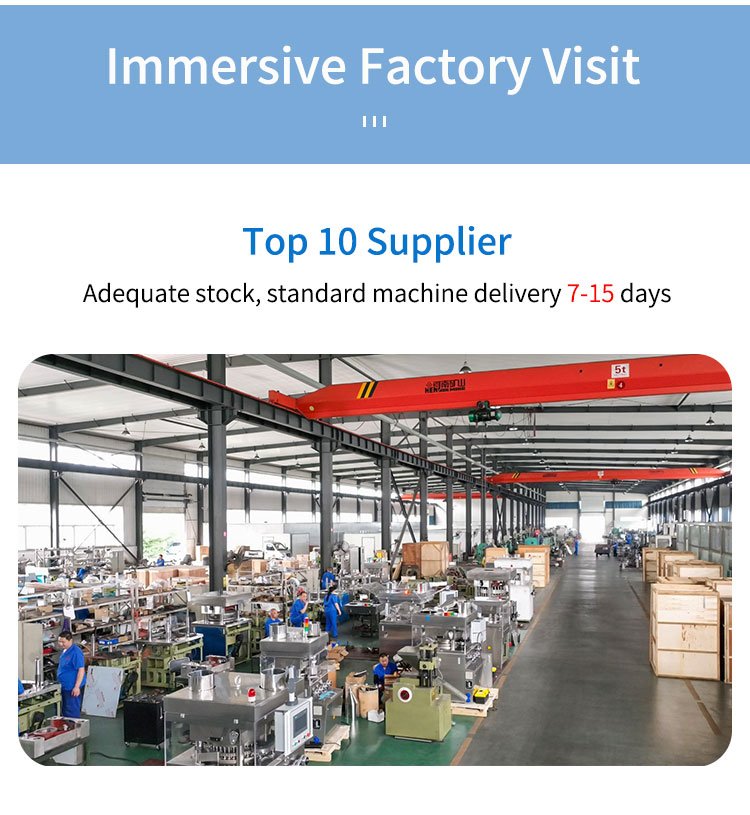

Such the durable raw materials are processed by ours raw material forging workshop and the CNC forming by the CNC machining machines, and finally can meet our production requirements for 29D large pressing rotary tablet press.
