NJP 3800D Large Scale Capsule Filling Machine By Rich Packing
NJP-3800D automatic capsule filling machine is suitable for filling various domestic or imported capsules.
Below we RICH PACKING will briefly introduce the performance characteristics of the automatic capsule filling machine:
1. NJP3800C adopts the patented structure of the new quick-change mold to complete all the work in a quarter of an hour.
2. The NJP-3800 filling machine adopts the reasonable selection of RU140 and RU125 high-precision gap indexing box, which fully guarantees the stability and service life of the machine.

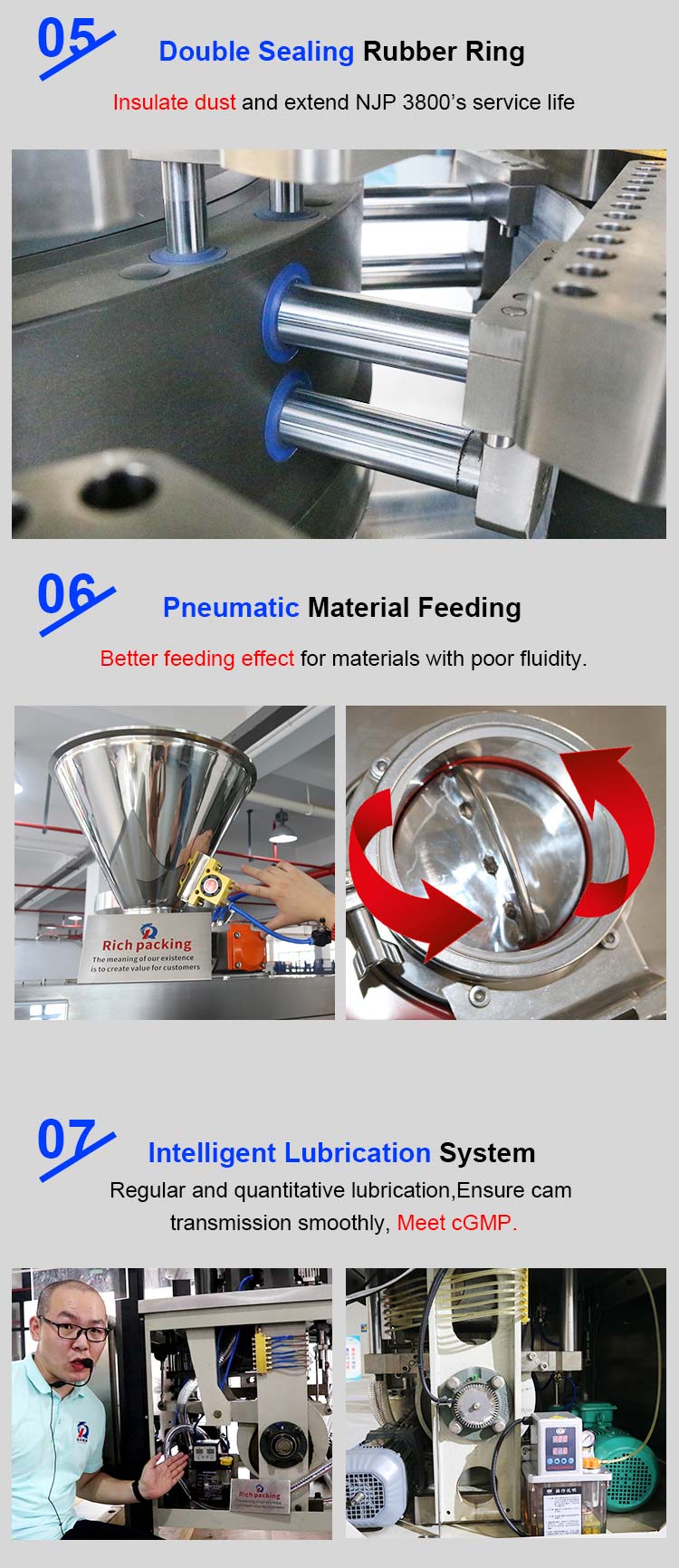

3. It adopts an automatic refueling system to automatically refuel the transmission components, all transmission cams and sprockets every 24 hours (real-time production).
4. The innovative design of NJP-3800 uses a sealing ring to protect the dust isolation device, which completely guarantees the sealing performance of the equipment operation and the disadvantages of cumbersome equipment maintenance.
5. Based on the lower plane of the measuring plate, the patented three-dimensional adjustment mechanism is adopted to eliminate the natural deformation of the measuring plate and the copper pad, and the gap is uniform.
6. Adopting the design of single row 13 die holes and 12 stations, the output of 280,000 grains per hour and the compact body have become the high-tech equipment with large output and space saving at home and abroad.
7. A switch that can control the capsule is added in the capsule broadcasting position (control outside the machine: safer and more convenient), and the staff can easily perform actions when they need emergency operations.
*** Technical parameter
|
Production capacity |
228000 pcs/h |
|
Net weight of machine |
2200Kg |
|
Overall size of machine |
1395×1180×2200 |
|
Power |
380/220V 50Hz |
|
Total power |
10.5KW |
|
No.of segment bores |
27 |
|
Vacuum |
120m3/h-0.04-0.08Mpa |
|
Dust collector |
24.5Kpa 210m3/h |
|
Noise |
<75DB(A) |
|
Making rate |
Empty capsule99.9% Full capsule99.8% |
|
Applicable capsule |
00,0,1,2,3,4,5# |
|
Filling error |
Western medicine:±3% Chinese medicine:±4% |
|
Applicable product |
Power、granule、pellet、tablet |
*** Configuration List
|
Item |
Specification |
Qty. |
Manufacturer |
|
Touch screen |
6AV6/648-0BE11-3A0 |
1 |
Germany Siemens |
|
PLC |
6ES7/288-1ST20-0AA0 |
1 |
Germany Siemens |
|
AC Contactor |
3T42（3pcs）3T43（2pcs） |
5 |
Germany Siemens |
|
Frequency converter |
ATV320U40N4C |
1 |
Schneider |
|
Thermal relay |
3UA59 |
4 |
Germany Siemens |
|
Button |
ZB2-BA3C |
3 |
Schneider |
|
Main Motor |
R57DRS100M4BES |
1 |
GermanySEW |
|
Cam |
RU-125DS-10 RU-100DS-6 |
2 |
Taiwan daojin |
|
Vacuum pump（wet） |
SK-2A |
1 |
Shanghai |
|
Dust collector |
XLJ Series |
1 |
Self-made |
|
Linear bearing |
LM12UU |
56 |
Korea SAMICK |
|
Linear bearing |
LM20UU |
40 |
Korea SAMICK |
|
Linear bearing |
LM25UU |
16 |
Korea SAMICK |
|
Linear bearing |
LM50UU |
4 |
Korea SAMICK |
|
Plastic engineering bearings |
LIN-01-16 |
20 |
Germany Igus |
|
Roller bearing |
CF6B |
10 |
Japan IKO |
|
Roller bearing |
CF12B |
2 |
Japan IKO |
|
Roller bearing |
CF16B |
3 |
Japan IKO |
|
Deep groove ball bearing |
CF20B |
2 |
JapanNSK |
