16 Line Gummy Counting Filling Machine

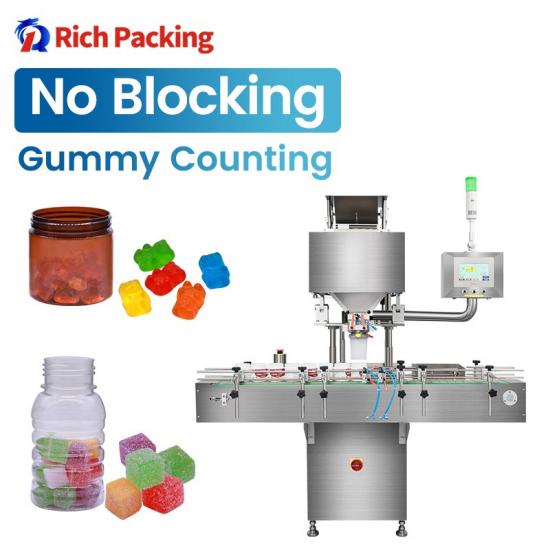

The DSL-16R gummy candies counting and bottling machine adopts a variety of new innovative designs to effectively solve the problems of gummy candies separation and counting. Its core equipment includes multiple separation devices and precision counting bottling, which can accurately identify and count gummies through advanced image recognition and sensor technology.
In terms of separation, the DSL-16R soft candy counting machine adopts dynamic vibration technology. This technology can produce a regular vibration through vibration, thereby effectively separating highly viscous and irregular gummy candies. During the separation process, the gummies are fully separated and then counted and filled into bottles or bags.
In terms of counting, the DSL-16R grain counting machine system uses advanced photoelectric recognition and sensor technology. First, the separated gummies are counted through a high-precision photoelectric sensor, and then processed through a recognition algorithm to accurately identify each gummy. Finally, a set quantity of the identified gummy candies is determined through sensor technology, and finally accurately packed into containers such as bottles or bags.
The emergence of the DSL-16R gummy counting and bottling machine system not only solves the problem of gummy candies separation and counting, but also greatly improves production efficiency. At the same time, due to its fully automated design, manual operations can be greatly reduced and quality control in the production process can be improved. In the future, we believe that the DSL-16R system will be applied in more food processing industries and play a greater role in promoting the development of the food processing industry.
*** Technical parameter
|
Model |
RQ-DSL-16R |
|
vibration groove tracks |
16 lane |
|
Production capacity |
80 bottles/min |
|
accuracy rate |
＞99.97% |
|
power |
2.2 KW |
|
weight |
650 kg |
|
Outline dim.(mm) |
1200×1550×1750 mm |
